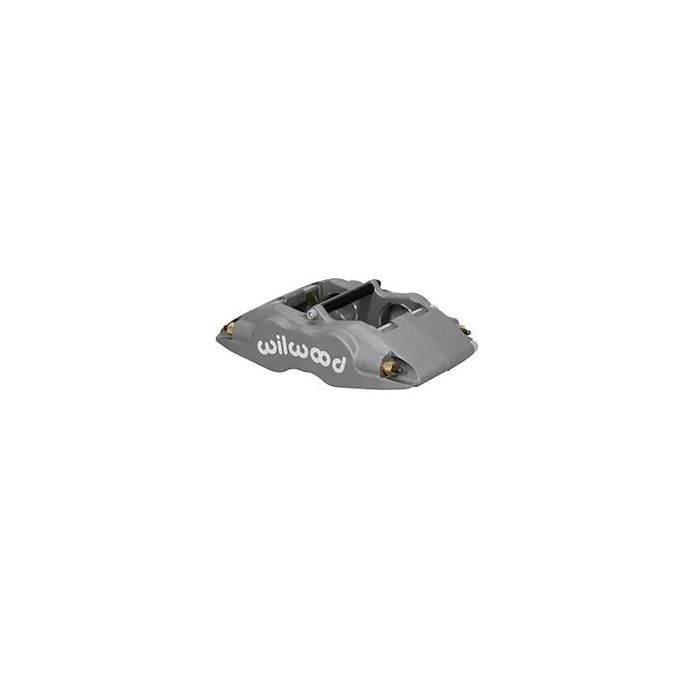

Wilwood Caliper-Forged Superlite 4 1.88/1.75in Pistons 1.25in Disc - 120-11330
FSLI4 and FSLI4/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.
These new FSLI4 and FSLI4/ST models use the latest innovation to the Superlite family of calipers. They have been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allow this group of right and left hand oriented differential piston bore calipers to be mounted in either a leading or trailing position.
The most noteworthy feature of all the FSLI caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL body is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet.
Features:
- Caliper Type: 4 Piston
- 5.18" Piston Area
- 1.88/1.75" Pistons, 1.25" Disc
- Rotor Diameter: 13.06"
- Stainless Steel Piston Type
- Anodized
Unleash Superior Stopping Power with the Wilwood Forged Superlite Internal 4 Brake Caliper L/H- WILW-120-11330
Experience the pinnacle of braking performance with the Wilwood Forged Superlite Internal 4 Brake Caliper L/H- WILW-120-11330. Designed for those who demand the best in precision and reliability, this brake caliper is engineered to deliver exceptional stopping power and control. Whether you're on the track or navigating city streets, this high-performance component ensures your vehicle responds with unmatched efficiency and safety.
Features and Benefits of the Wilwood Forged Superlite Internal 4 Brake Caliper L/H- WILW-120-11330
- Forged Aluminum Construction: Crafted from high-strength forged aluminum, this caliper offers superior durability and reduced weight. The lightweight design enhances your vehicle's handling and responsiveness, making it ideal for both performance enthusiasts and everyday drivers.
- Four-Piston Design: The advanced four-piston configuration provides balanced and consistent braking force. This ensures even pressure distribution across the brake pads, resulting in smoother and more controlled stops.
- Internal Fluid Passages: The innovative internal fluid passages eliminate the need for external tubes, reducing potential leak points and enhancing reliability. This design not only improves the caliper's aesthetics but also simplifies installation and maintenance.
- High-Temperature Seals: Equipped with high-temperature seals, the caliper is built to withstand extreme conditions. This feature ensures long-lasting performance and reliability, even under the most demanding driving scenarios.
- Versatile Fitment: The Wilwood Forged Superlite Internal 4 Brake Caliper is designed to fit a wide range of vehicles, providing flexibility and ease of integration into your existing braking system.
With the Wilwood Forged Superlite Internal 4 Brake Caliper L/H- WILW-120-11330, you gain more than just a component; you gain confidence in your vehicle's ability to perform at its best. The caliper's precision engineering and robust construction ensure that you can tackle any driving challenge with ease. Whether you're upgrading your current system or building a new one, this caliper is a perfect choice for those who refuse to compromise on quality.
Invest in the Wilwood Forged Superlite Internal 4 Brake Caliper L/H- WILW-120-11330 and experience the difference that superior engineering can make. Elevate your driving experience with a brake caliper that combines cutting-edge technology with unparalleled craftsmanship. Trust in Wilwood's legacy of excellence and equip your vehicle with a component that stands the test of time.
| Brand | Wilwood |
|---|---|
| upc | 889545001372 |
