Wilwood Proportioning Valve Compact Lever Master Cylinder - M10x1 BF In/Out - 260-15832
Please Request Quote for stock status

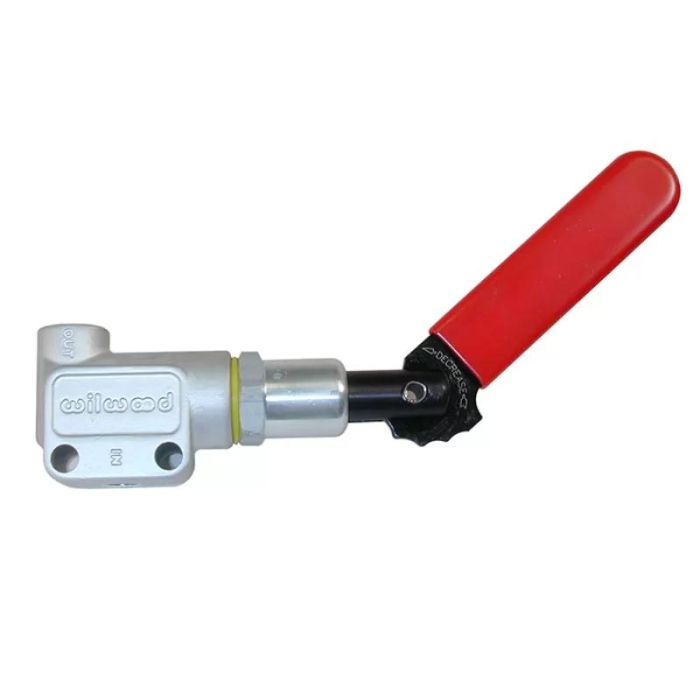

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever "clicks" into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25" side mounting holes spaced 1.00" apart. Inlet / outlet ports are 10MM X 1 bubble flare.
Features:
- Bore Size:
- Material: Aluminum / Steel
- Finish: Clear Anodize
- Rate: 0 to 57%
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever "clicks" into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25" side mounting holes spaced 1.00" apart. Inlet / outlet ports are 10MM X 1 bubble flare.
Features:
- Bore Size:
- Material: Aluminum / Steel
- Finish: Clear Anodize
- Rate: 0 to 57%
| Brand | Wilwood |
|---|---|
| upc | 889545092455 |
