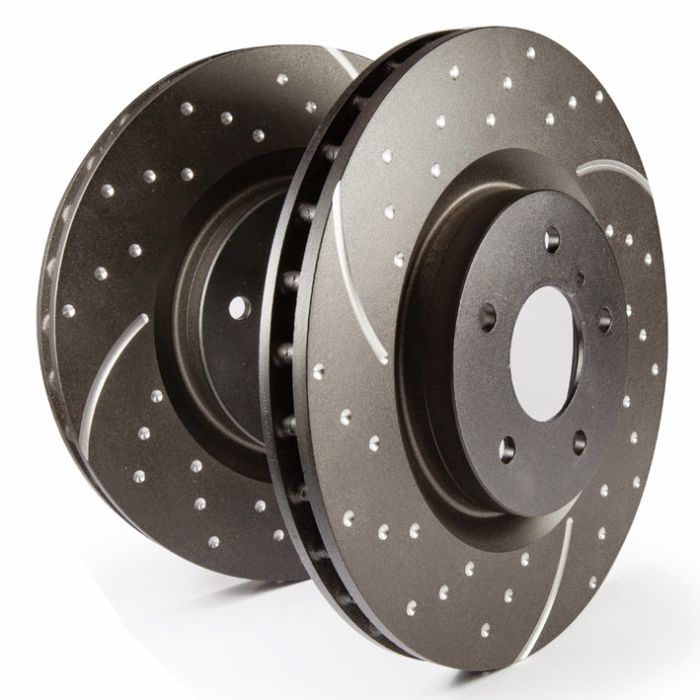

EBC 08+ Lexus LX570 5.7 GD Sport Rear Rotors - GD7436

EBC 08+ Lexus LX570 5.7 GD Sport Rear Rotors - GD7436 aftermarket brake rotor replacement component

These rear brake rotors use EBC’s GD sport design with wide slots and blind drilled dimples to help degas brake pads and clear dirt, dust, and debris from the braking area. Wide aperture slots are also used for cooling to reduce rotor temperatures and help prevent brake fade.

SKU: ebcGD7436. Finished in Thermic Black for a clean appearance and corrosion resistance, this rotor set is specified for the rear position and is supplied as a set of two rotors.

Key Benefits

• Wide aperture slots promote cooling to reduce temperatures and brake fade.
• Blind drilled dimples help avoid stress cracks compared with through-drilling.
• Slots and dimples assist pad degassing during repeated braking events.
• Helps clear dirt, dust, and debris from the braking contact area.
• Thermic Black coating provides corrosion resistance and a sleek finished look.
• Rear-position rotor specification matched to the listed LX570 application notes.

Specifications

• Position: Rear
• Rotor diameter: 345 mm (13.6 in.)
• Centre hole diameter: 112 mm
• Height: 76 mm
• New thickness: 18 mm
• Minimum thickness: 16 mm
• Bolt holes/studs: 5
• PCD: 150 mm
• Solid or vented: Vented
• Style: OE

Notes

• 13.6 in. Dia. Set of Two
• Fits position: Rear
• DO NOT FIT UPGRADE PADS TO REAR OF VEHICLE UNLESS SAME UPGRADE FITTED TO FRONT.
• The Thermic Black coating does NOT need to be removed before install.
• Do NOT use brake cleaner or any other method to remove Thermic Black coating from discs rotors.
• The Thermic Black coating will be removed in the pad swept area by the brake pads within the first 10 to 20 stops made after installation on the vehicle.
• The Thermic Black coating is an anti corrosion coating for long resistance against rust.
• Attempting to remove Thermic Black Coating with brake cleaner or any other method is NOT covered under EBC warranty.

Designed for the rear of the Lexus LX570 (08+ 5.7), these GD pattern rotors focus on cooling, debris clearing, and crack-avoidance design features while retaining OE-style fitment dimensions. The Thermic Black coating is intended to remain in place and will naturally wear from the pad sweep area during initial use.
