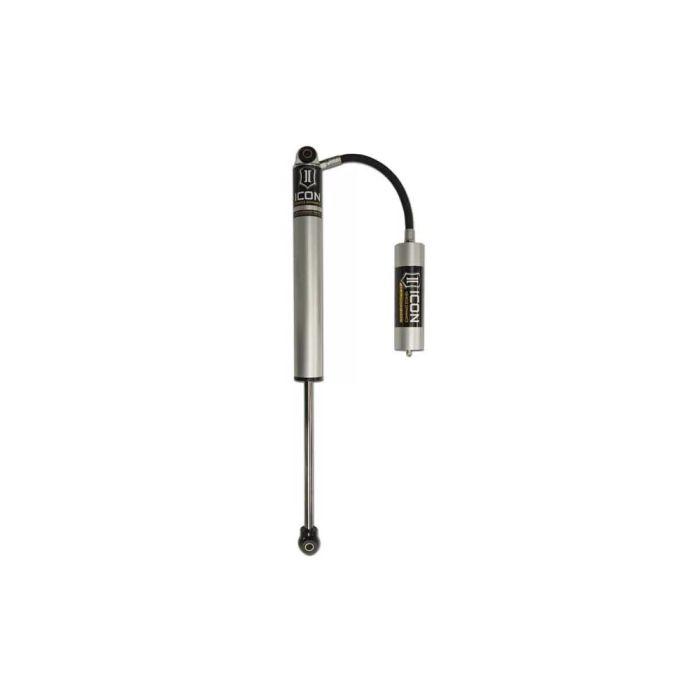

ICON 2017+ Ford F-250/F-350 Super Duty Rear 0-2in 2.0 Series Aluminum Shocks VS RR - 66516R

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

View Installation Instructions

Features:

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8" chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Application-specific reservoir mounting hardware
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable

• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 614600 - 2.0 ICON BILLET RESI CLAMP KIT
• Adjustable: No
• Body Diameter: 2 IN
• Boot Included: No
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Color: Silver
• Dust Boot Included: No
• Dust Shield: No
• Finish: Anodized
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Remote Reservoir: Yes
• Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Upper Mount Type: Eyelet

• Compatible With 0-2" Of Rear Lift Over Stock
• Not Compatible With F-350/F-450 Cab & Chassis Models

• Ford F-250 Super Duty 4WD 17-23
• Ford F-350 Super Duty Standard Cab Pickup 4WD 17-23
• Ford F-350 Super Duty Extended Cab Pickup 4WD 17-23
• Ford F-350 Super Duty Crew Cab Pickup 4WD 17-23
• Ford F-450 Super Duty Crew Cab Pickup 17-23
• Ford F-450 Super Duty Standard Cab Pickup 2019-2023
