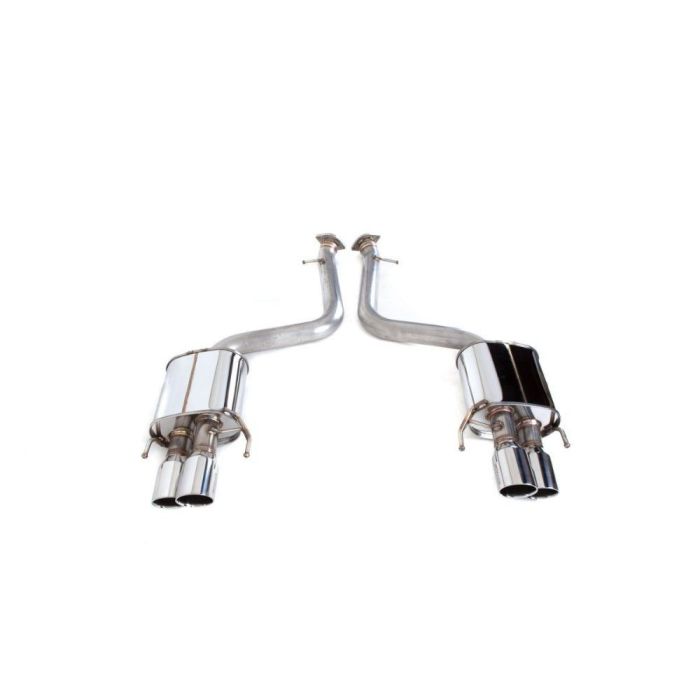

Revel Medallion Touring-S Exhaust - Quad Tip / Rear Section 15-16 Lexus RC F / 21 - 23 IS500 - T70180AR
$1,083.00
sku
rvlT70180AR
More than 2 in stock
Revel Medallion Touring S Axle-Back Exhaust System Lexus IS500 | RC-F 2015-2023
Features:
- Full SUS304 Stainless Steel Construction. The Revel Medallion Touring-S exhaust system is constructed from full SUS304 stainless steel for corrosion resistance & durability, and 1.5mm wall thickness piping for increased strength and reduced resonation. The piping is also mandrel bent in order to retain the same piping diameter at the bends thus optimizing exhaust flow characteristics.
- Under 93db Performance. Tested under 93db sound levels under load, the Medallion Touring-S exhaust system gives a clean & deep tone at all RPM ranges while maintaining exhaust efficiency. Some applications are excluded.
- Fully Hand Tig Welded. The Medallion Touring-S exhaust system is fully hand TIG welded and utilizes laser cut flanges that are stronger for more durable connections.
- Dual-Wall Angle Cut Tips. The dual-wall angle cut tips have a large inner diameter for modern aesthetics and increased exit flow.
- Straight Through Design.Straight through muffler design gives better flow for increased power and allows for a lighter weight system. Compact muffler canisters offer optimal ground clearance for lowered vehicles.
- Advantex Packing Material. Advantex packing material offers superior flow characteristics while offering great sound suppression. It is a highly advanced muffler packing material that greatly excels over other types such as loosely-packed fiberglass materials and composite cube types. It is heat resistant up to 1200??F and extends the functional life of the exhaust system.
- Straight Through Design: Straight through muffler design gives better flow for increased power and allows for a lighter weight system with an aggressive tone. Compact muffler canisters offer optimal ground clearance for lowered vehicles.
- Pipe Diameter: 70 mm
- Tip Diameter: 90 mm
- Lexus RC-F 2015-2016
- Lexus IS500 2021-2023
- Dual Muffler, Quad Tip, Rear Section (Axle Back)
Revel Medallion Touring-S Exhaust - Quad Tip / Rear Section 15-16 Lexus RC F / 21 - 23 IS500 - T70180AR performance upgrade part
This axle-back rear section exhaust is designed for select Lexus RC-F and IS500 applications, using a straight-through muffler layout and quad-tip finish. It focuses on maintaining exhaust efficiency while delivering a clean, deep tone across RPM ranges.
SKU: rvlT70180AR
Key Benefits
- Full SUS304 stainless steel construction improves corrosion resistance and long-term durability.
- 1.5mm wall thickness piping helps increase strength and reduce resonation.
- Mandrel-bent piping retains diameter through bends for optimized exhaust flow.
- Tested under 93db under load for controlled volume and deep tone.
- Hand TIG-welded build with laser-cut flanges for durable, secure connections.
- Dual-wall angle-cut tips with large inner diameter for modern styling.
- Advantex packing material supports sound suppression and extends service life.
Specifications
- Pipe Diameter: 70 mm
- Tip Diameter: 90 mm
Applications
- Lexus RC-F 2015-2016
- Lexus IS500 2021-2023
Notes
- Dual Muffler, Quad Tip, Rear Section (Axle Back)
Built with straight-through mufflers and compact canisters for ground clearance on lowered vehicles, this rear section balances flow-focused design with refined sound control. Materials, welding, and flange construction are selected for durability while maintaining a consistent exhaust path from inlet to quad-tip outlet.
| Brand | Revel |
|---|
