Tein 2012+ Lexus GS250 (GRL11) / 2013+ Lexus GS350 (GRL10L) Flex AVS Coilover Kit - VSQ62-J1AS3
Please Request Quote for stock status

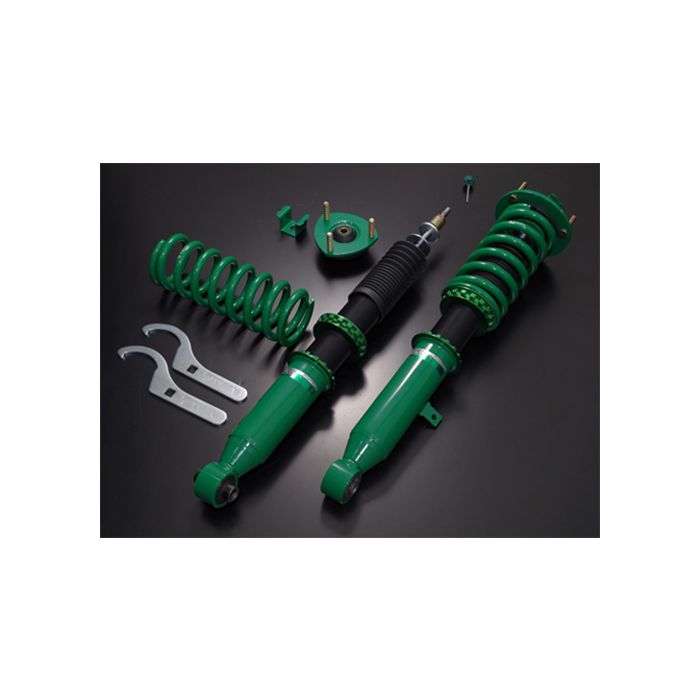

TEIN FLEX AVS Coilover Kit for Lexus GS300H Version L, I Package AWL10 FR 2013.10+ JPN- VSQ62-J1AS3
Transform your driving experience with the TEIN FLEX AVS Coilover Kit, meticulously designed for the Lexus GS300H Version L, I Package AWL10 FR 2013.10+. This high-performance suspension system offers unparalleled control and comfort, ensuring your vehicle handles with precision and grace.
- Advanced Vehicle Stability: Experience superior handling with the FLEX AVS technology, which dynamically adjusts to road conditions, providing a smooth and stable ride.
- Customizable Ride Height: Tailor your vehicle's stance to your preference with adjustable ride height settings, enhancing both aesthetics and aerodynamics.
- Enhanced Comfort: Enjoy a refined driving experience with dampers that absorb road imperfections, ensuring a comfortable journey on any terrain.
- Precision Engineering: Crafted with high-quality materials, this coilover kit is built to last, offering durability and reliability for years to come.
- Easy Installation: Designed for straightforward installation, this kit allows you to upgrade your vehicle's suspension without hassle.
Whether you're navigating city streets or cruising on the highway, the TEIN FLEX AVS Coilover Kit elevates your Lexus GS300H's performance and comfort to new heights. Embrace the perfect blend of luxury and sportiness with this expertly engineered suspension solution.
The TEIN FLEX Adaptive Variable Suspension (AVS) for Toyota and Lexus vehicles eliminates the need to replace OE suspension systems with non-OE ones. The FLEX AVS enables ride height adjustment without deactivating AVS. Newly-designed "AVS Needle" for damping force adjustment makes it possible to provide broader damping force adjustable range within the operating angle of AVS actuator.
The TEIN Flex AVS are made with a Hydraulic Bump Stopper (H.B.S) this provides more comfort and hight durability at maximum passenger or cargo load. When regular shock absorbers fully stroke, their bump rubbers are compressed. The energy that is generated by that escapes as a repulsive force, which can disturb the vehicle's behavior. Furthermore, repeated full strokes can damage the damper. In the same situation the EnduraPro SP KIT, featuring H.B.S., internally convert the impact of the stroke to thermal energy (heat) and absorb it, strongly reducing the impact that disturbs the vehicle's behavior. With less damage to the dampers, H.B.S. also contributes to their durability. In shock absorbers with inactive or no H.B.S., the operative valve (green) floats, and oil flows freely through the base valve ports. Resistance to the flow from the shim stack then, causes damping force. Near full compression, when the piston rod strokes beyond a predetermined point, the operative valve is pushed down and activates H.B.S.: the base valve ports are narrowed, blocking the oil flow. This results in high damping force. A relief valve serves to suppress sudden damping force increase, when the pressure in the cylinder exceeds its regular level. The setup of the H.B.S. mechanism is optimized per vehicle model, with the right activation point and damping force.
Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -86
- Max Low (inch): -3.4
- Max High (mm): 8
- Max High (inch): 0.3
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring
- Rate (kgf/mm): 8
- Rate (lbs/in): 448
- SP PART#SB080-01200
- Free Length (mm): 200
- I.D. (mm): ID70
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -73
- Max Low (inch): -2.9
- Max High (mm): -3
- Max High (inch): -0.1
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 12
- Rate (lbs/in): 672
- SP PART#S6Q63-01120
- Free Length (mm): 223
- Year: 2013.10+
- Make: Lexus
- Model: GS300H
- Trim: Version L, I Package
- Drivetrain: FR
- Chassis: AWL10
- Motor Size: 2500
- Vehicle Region: JPN
- Not Tested On F Sport Model
- Full-Length Ride Height Adjustment
- Twin-Tube System
- Hydraulic Bump Stopper (H.B.S)
- Mount Included
| Brand | TEIN |
|---|
