TEIN FLEX Z Coilover Kit Lexus GS250 Base, I Package, Version L GRL11 FR 2012.01+ JPN- VSQ62-C1AS3
- Experience superior handling and ride comfort with the TEIN FLEX Z Coilover Kit Lexus GS250 Base, I Package, Version L GRL11 FR 2012.01+ JPN- VSQ62-C1AS3 for ultimate driving precision.
- Enhance your Lexus GS250’s suspension performance with adjustable coilovers designed for smooth city cruising and spirited weekend drives.
- Upgrade your vehicle’s stance and control, perfect for enthusiasts seeking improved cornering and stability on various road conditions.
- Transform your driving experience with premium coilover technology tailored for the Lexus GS series; add to cart now to elevate your ride.

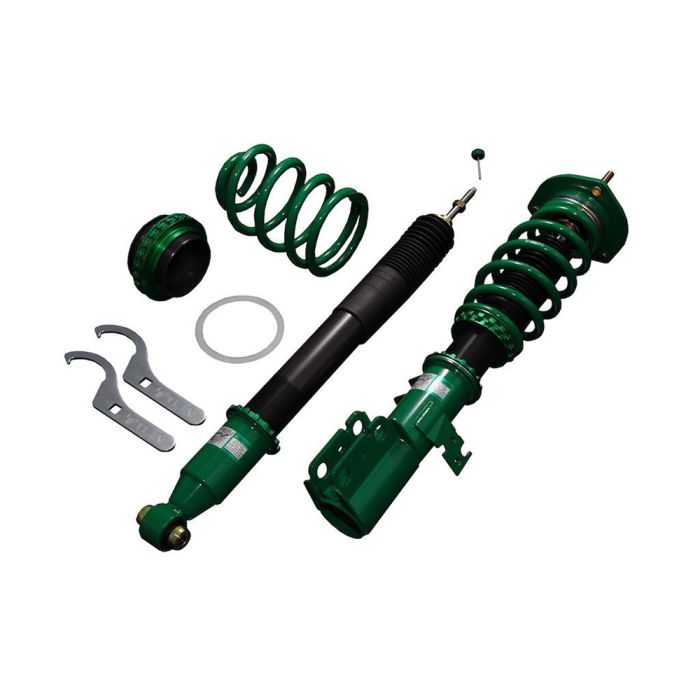

TEIN FLEX Z Coilover Kit Lexus GS250 Base, I Package, Version L GRL11 FR 2012.01+ JPN- VSQ62-C1AS3 performance upgrade part
FLEx Z carries over the core features and quality of TEIN STREET FLEx while using a new platform to reduce production time and cost. It maintains “Made in Yokohama” manufacturing at TEIN HQ Factory in Yokohama, Japan, and offers ride height adjustable shock absorbers with TEIN technology at a more accessible price point.
SKU: TEIN-VSQ62-C1AS3. This kit uses a “Sealed Structure” damper process: the shell pipe is formed, oil and gas are injected, and the opening is sealed by a crimping process. Efficient production methods such as seam welding help reduce overall production cost.
Key Benefits
- Twin-tube design supports ride comfort with sufficient stroke for street use.
- Full-length ride height adjustment minimizes changes in ride quality when lowering.
- 16-level damping force adjustment (compression/rebound together) via needle valve control.
- ADVANCE Needle oil-flow control provides a usable damping adjustment range.
- EDFC series compatibility enables in-cabin electronic damping control on supported models.
- Wrought aluminum spring seats and thrust washers reduce friction during height changes.
- ZT Coating helps resist rust and supports smooth long-term adjustability.
Specifications
- Front: Damping Force Adjustment: Y; Full-Length Ride-Height Adjustable: Y; Upper Mount: R/U; Recommended Ride Height: -35mm (-1.4in)
- Front Ride Height Range: Max Low: -95mm (-3.7in); Max High: 2mm (0.1in); Recommended Low: -45mm (-1.8in); Recommended High: -25mm (-1in)
- Front Spring: Rate: 8 kgf/mm (448 lbs/in); SP PART# SB080-01200; Free Length: 200mm; I.D.: ID70
- Rear: Damping Force Adjustment: Y; Full-Length Ride-Height Adjustable: Y; Upper Mount: R/U; Recommended Ride Height: -40mm (-1.6in)
- Rear Ride Height Range: Max Low: -83mm (-3.3in); Max High: -13mm (-0.5in); Recommended Low: -50mm (-2in); Recommended High: -30mm (-1.2in)
- Rear Spring: Rate: 12 kgf/mm (672 lbs/in); SP PART# S6Q63-01120; Free Length: 223mm
- Fitment: 2012.01+ Lexus GS250 Base, I Package, Version L; FR; Chassis GRL11; Motor Size 2500; Vehicle Region JPN
- Notes: Not Tested On F Sport Model.
TEIN FLEx Z combines ride height adjustment with damping force tuning in a twin-tube layout intended for street comfort and stability. Features such as ZT Coating, low-friction seats/washers, and high-spec damper oil are used to support smooth operation and consistent damping performance across varied temperatures.
| Brand | TEIN |
|---|
