TEIN FLEX Z Coilover Kit Lexus GS450H GWS191L FR 2007-2011 USA- VSC76-C1SS3
$1,110.00
sku
TEIN-VSC76-C1SS3
- TEIN FLEX Z Coilover Kit Lexus GS450H GWS191L FR 2007-2011 USA- VSC76-C1SS3 delivers precise suspension tuning for superior handling and ride comfort.
- Enhance your Lexus GS450H’s performance with adjustable coilovers designed for smooth cornering and improved road grip.
- Upgrade your luxury hybrid sedan’s suspension to enjoy a sportier drive and elevated control on every journey.
- Optimize your vehicle’s stance and responsiveness effortlessly—add to cart now and transform your driving experience.

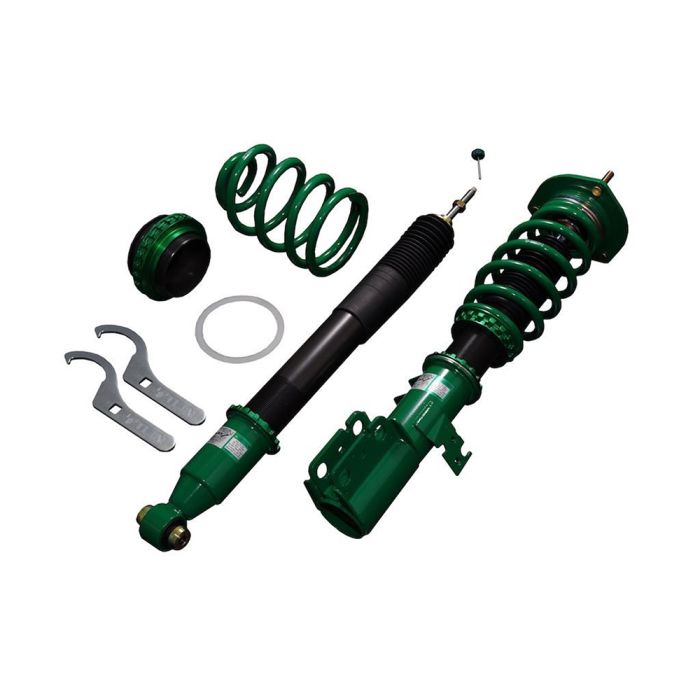

TEIN FLEX Z Coilover Kit Lexus GS450H GWS191L FR 2007-2011 USA- VSC76-C1SS3 performance suspension upgrade part
The TEIN Flex Z is a ride-height adjustable coilover kit developed to deliver street-focused ride comfort with adjustable handling feel. It carries TEIN’s “Made in Yokohama” quality while using a cost-efficient production platform.
SKU: TEIN-VSC76-C1SS3
This kit uses TEIN’s sealed structure manufacturing process, where oil and gas are injected and the shell pipe opening is sealed by a crimping process. The approach reduces production time versus disassemblable dampers and supports lower overall production cost.
Key Benefits
- Twin-tube design helps maintain stroke and compliance on rough street surfaces.
- Full-length ride height adjustment minimizes ride-quality change during height changes.
- 16-level damping force adjustment enables linear step-by-step stiffness changes.
- ADVANCE Needle oil-flow control supports a wide damping adjustment range.
- EDFC series compatibility allows cockpit damping control when supported by vehicle.
- ZT Coating and low-friction components support smoother, long-term height adjustment.
- High-spec damper oil helps stable damping across low-to-high temperature conditions.
Specifications
- Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -40
- Recommended Ride Height (inch): -1.6
- Ride Height Adjustable Range:
- Max Low (mm): -97
- Max Low (inch): -3.8
- Max High (mm): 17
- Max High (inch): 0.7
- Recommended Low (mm): -50
- Recommended Low (inch): -2
- Recommended High (mm): -30
- Recommended High (inch): -1.2
- Spring
- Rate (kgf/mm): 10
- Rate (lbs/in): 560
- SP PART#SB100-01200
- Free Length (mm): 200
- I.D. (mm): ID70
- Rear Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -25
- Recommended Ride Height (inch): -1
- Ride Height Adjustable Range:
- Max Low (mm): -118
- Max Low (inch): -4.6
- Max High (mm): 14
- Max High (inch): 0.6
- Recommended Low (mm): -35
- Recommended Low (inch): -1.4
- Recommended High (mm): -15
- Recommended High (inch): -0.6
- Spring:
- Rate (kgf/mm): 8
- Rate (lbs/in): 448
- SP PART#SM080-01250
- Free Length (mm): 250
- I.D. (mm): ID65
- Fitment:
- Year: 2007-2011
- Make: Lexus
- Model: GS450H
- Drivetrain: FR
- Chassis: GWS191L
- Motor Size:
| Brand | TEIN |
|---|
