TEIN FLEX Z Coilover Kit Lexus LS430 UCF30 FR 2001-2006 USA- VSY66-C1SS3
$1,160.00
sku
TEIN-VSY66-C1SS3
- Experience superior handling and ride comfort with the TEIN FLEX Z Coilover Kit Lexus LS430 UCF30 FR 2001-2006 USA- VSY66-C1SS3 for your luxury sedan.
- Enhance your Lexus suspension system with precision-tuned coilovers designed for smooth performance and improved road control.
- Upgrade your vehicle’s stance and driving dynamics effortlessly, transforming everyday drives into thrilling experiences.
- Perfect for Lexus LS430 owners seeking reliable, adjustable suspension solutions that boost both style and function.
- Optimize your ride quality and handling—add to cart now and elevate your Lexus driving experience today.

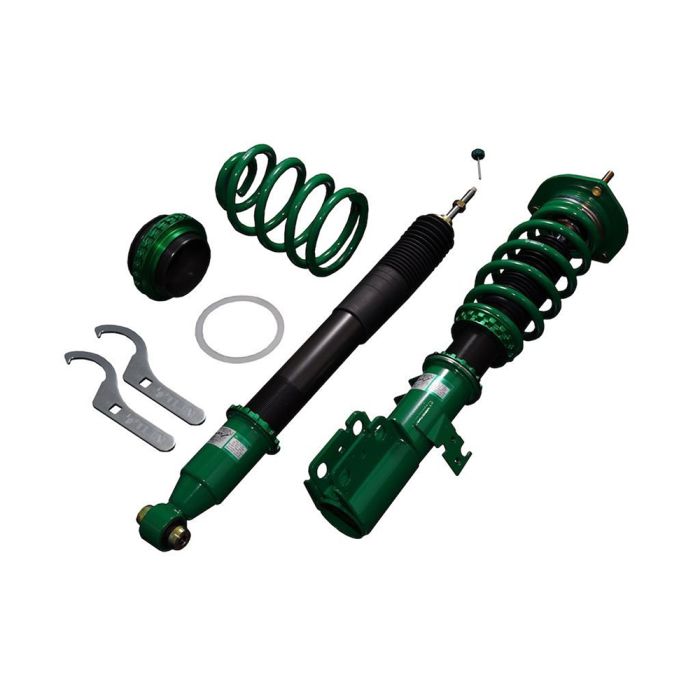

TEIN FLEX Z Coilover Kit Lexus LS430 UCF30 FR 2001-2006 USA- VSY66-C1SS3 aftermarket suspension performance upgrade part
TEIN FLEX Z is a ride height adjustable shock absorber and coilover kit built on a new platform to reduce production cost while maintaining “Made in Yokohama” quality. It uses a sealed structure process where oil and gas are injected and the shell opening is crimp-sealed, streamlining manufacturing versus disassemblable dampers.
SKU: TEIN-VSY66-C1SS3
Key Benefits
- Twin-tube system helps preserve street ride comfort at lowered heights.
- Full-length ride height adjustment minimizes ride changes during height setting.
- 16-level damping force adjustment (compression/rebound together) for tailored feel.
- ADVANCE Needle valve design supports a wide, usable damping adjustment range.
- Compatible with EDFC series for in-cabin damping force control (model dependent).
- ZT Coating and low-friction components support smoother long-term adjustments.
- No-Sag springs and high-spec damper oil support stable, consistent damper operation.
Specifications
- Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -50
- Recommended Ride Height (inch): -2
- Ride Height Adjustable Range:
- Max Low (mm): -120
- Max Low (inch): -4.7
- Max High (mm): -2
- Max High (inch): -0.1
- Recommended Low (mm): -60
- Recommended Low (inch): -2.4
- Recommended High (mm): -40
- Recommended High (inch): -1.6
- Spring
- Rate (kgf/mm): 14
- Rate (lbs/in): 784
- SP PART#SB140-01200
- Free Length (mm): 200
- I.D. (mm): ID70
- Rear Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -50
- Recommended Ride Height (inch): -2
- Ride Height Adjustable Range:
- Max Low (mm): -138
- Max Low (inch): -5.4
- Max High (mm): 25
- Max High (inch): 1
- Recommended Low (mm): -60
- Recommended Low (inch): -2.4
- Recommended High (mm): -40
- Recommended High (inch): -1.6
- Spring:
- Rate (kgf/mm): 8
- Rate (lbs/in): 448
- SP PART#SC080-01250
- Free Length (mm): 250
- I.D. (mm): ID70
- Fitment:
- Year: 2001-2006
- Make: Lexus
- Model: LS430
- Drivetrain: FR
- Chassis: UCF30
- Motor Size: 4300
- Vehicle Region: USA
Designed for the Lexus LS430 (UCF
