Tein 14-15 Honda Civic SI FG4/FB6 Street Advance Z Coilover Kit - GSHF6-9UAS2

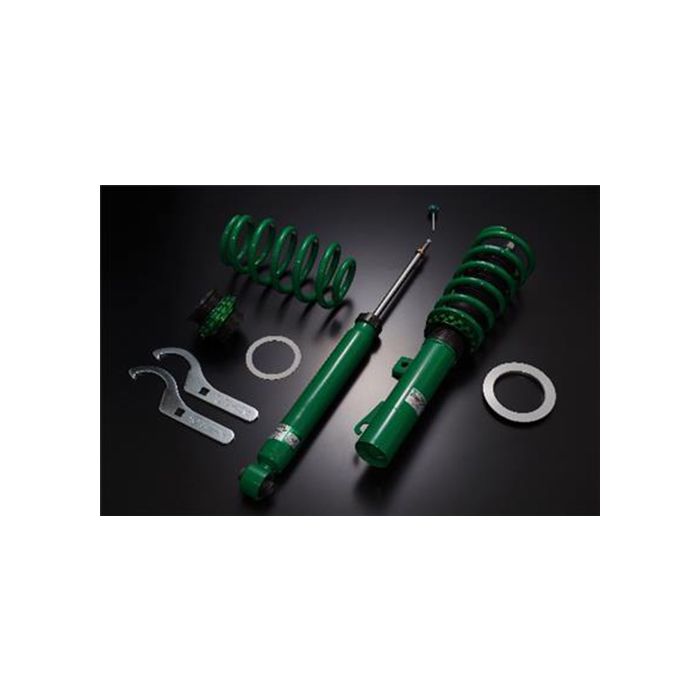

TEIN STREET ADVANCE Z Coilover Kit for Acura ILX DE2 FF 2016-2018
Transform your driving experience with the TEIN STREET ADVANCE Z Coilover Kit, specifically designed for the Acura ILX DE2 FF models from 2016 to 2018. This high-performance suspension system offers a perfect blend of comfort and control, making it an ideal choice for both daily driving and spirited weekend adventures.
- Enhanced Ride Quality: Enjoy a smoother ride with advanced damping technology that absorbs road imperfections, providing a more comfortable and stable driving experience.
- Adjustable Ride Height: Customize your vehicle's stance with ease. The adjustable ride height feature allows you to lower or raise your car to suit your style and driving needs.
- Durable Construction: Built with high-quality materials, this coilover kit is designed to withstand the rigors of daily use while maintaining its performance over time.
- Precision Handling: Experience improved handling and cornering capabilities, thanks to the expertly engineered components that enhance your vehicle's responsiveness.
- Easy Installation: Designed for straightforward installation, this kit comes with all necessary components and detailed instructions, making it accessible even for those new to car modifications.
- Cost-Effective Performance: Offering exceptional value, the TEIN STREET ADVANCE Z Coilover Kit delivers high-end performance without breaking the bank.
Upgrade your Acura ILX with the TEIN STREET ADVANCE Z Coilover Kit and enjoy a driving experience that combines comfort, style, and performance. Whether you're navigating city streets or exploring winding roads, this kit ensures your vehicle handles with precision and grace.
The TEIN STREET ADVANCE Z damper is the evolution of the popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using our new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. The unique ZT Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance. Each STREET ADVANCE Z has updated internal components and external coatings increase durability and product life. STREET ADVANCE Z dampers are great for daily driving and spirited driving for all types of drivers.
Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -45
- Recommended Ride Height (inch): -1.8
- Ride Height Adjustable Range:
- Max Low (mm): -75
- Max Low (inch): -3
- Max High (mm): -35
- Max High (inch): -1.4
- Recommended Low (mm): -55
- Recommended Low (inch): -2.2
- Recommended High (mm): -35
- Recommended High (inch): -1.4
- Spring
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#S8B14-13060
- Free Length (mm): 220
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -45
- Recommended Ride Height (inch): -1.8
- Ride Height Adjustable Range:
- Max Low (mm): -69
- Max Low (inch): -2.7
- Max High (mm): -32
- Max High (inch): -1.3
- Recommended Low (mm): -55
- Recommended Low (inch): -2.2
- Recommended High (mm): -35
- Recommended High (inch): -1.4
- Spring:
- Rate (kgf/mm): 7
- Rate (lbs/in): 392
- SP PART#S6HC1-13070
- Free Length (mm): 165
- Year: 2016-2018
- Make: Acura
- Model: ILx
- Drivetrain: FF
- Chassis: DE2
- Motor Size: 2400
- Vehicle Region: USA
- 4Dr/4Cyl. Ft: Oe Dust Boot Needs To Be Modified. Rr: Oe Spring Insulator Needs To Be Modified.
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-Way Damping Adjustable with over 200% increase in damping force change.
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- One Year Warranty Against Manufacturer s Defects
- EDFC Compatible
| Brand | TEIN |
|---|
