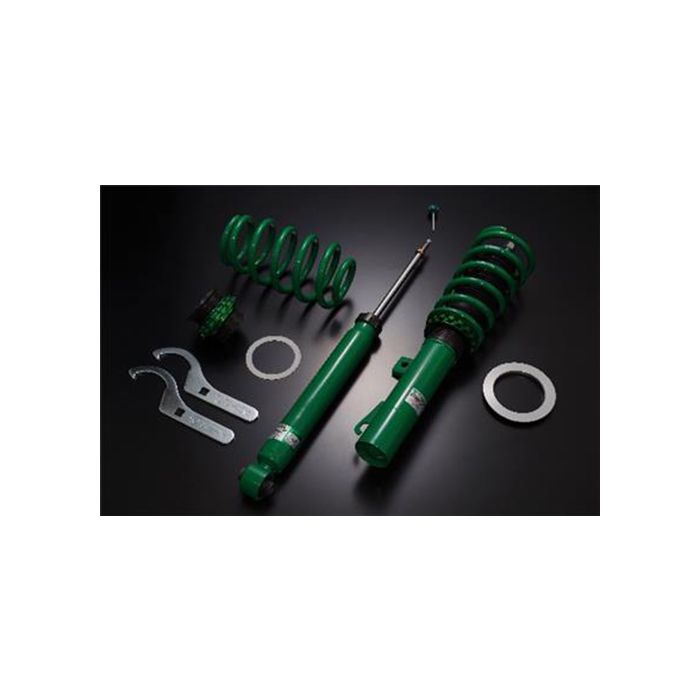

Tein 92-00 Lexus SC300 (JZZ30) Street Advance Z Coilovers - GST60-91SS2

Tein 92-00 Lexus SC300 (JZZ30) Street Advance Z Coilovers - GST60-91SS2 aftermarket automotive suspension upgrade

TEIN STREET ADVANCE Z coilovers are designed as an evolution of the Super Street setup, focusing on a sporty ride feel, a more aggressive stance, and a wider-range damping force adjustment using Advance Needle technology. A shortened shell case design is used to maintain damper stroke at lowered ride heights, with ride height adjustment through a ZT coated threaded sleeve.

SKU: teinGST60-91SS2

Key Benefits

• Advance Needle technology provides more noticeable damping force change across adjustments.
• Shortened shell case helps maintain damper stroke at reduced ride height.
• ZT coated height-adjust threads resist abrasion from gravel and road debris.
• Updated internal components and external coatings increase durability and product life.
• 16-way damping adjustment offers over 200% increase in damping force change.
• Twin-tube construction with 22mm piston diameter for strut-type front and rear.
• EDFC compatible for integration with TEIN’s electronic damping control system.

Specifications

• Construction: Steel; twin tube internal construction
• Damping Force Adjustment: Yes (front and rear)
• Full-Length Ride-Height Adjustable: No (front and rear)
• Upper Mount: OEM (front and rear)
• Ride Height Adjustment: Via spring seat
• Damper Body: Powder coated; non-welded ZT coated adjustment tube
• Dust Boots: Full-length
• Spring Seat: 1-piece aluminum with Delrin thrust washer

• Front Recommended Ride Height: -40 mm (-1.6 in)
• Front Ride Height Adjustable Range: Max Low -93 mm (-3.7 in), Max High -10 mm (-0.4 in)
• Front Recommended Range: Low -50 mm (-2.0 in), High -30 mm (-1.2 in)
• Front Spring Rate: 12 kgf/mm (672 lbs/in); Free Length 250 mm; SP PART# S8T60-13120

• Rear Recommended Ride Height: -35 mm (-1.4 in)
• Rear Ride Height Adjustable Range: Max Low -95 mm (-3.7 in), Max High -19 mm (-0.7 in)
• Rear Recommended Range: Low -45 mm (-1.8 in), High -25 mm (-1.0 in)
• Rear Spring Rate: 7 kgf/mm (392 lbs/in); Free Length 250 mm; SP PART# S8T61-13070

• Warranty: One year against manufacturer’s defects

• Fitment Year: 1992-2000
• Make: Lexus
• Model: SC400
• Drivetrain: FR
• Chassis: UZZ30
• Motor Size: 4000
• Vehicle Region: USA

• Notes: 2Dr/8Cyl

This coilover set is built for daily driving and spirited use, combining adjustable damping with a corrosion-resistant, abrasion-resistant height-adjust mechanism. OEM upper mounts are retained, and the design focuses on maintaining usable damper stroke when lowering the vehicle while improving long-term durability through updated components and coatings.
