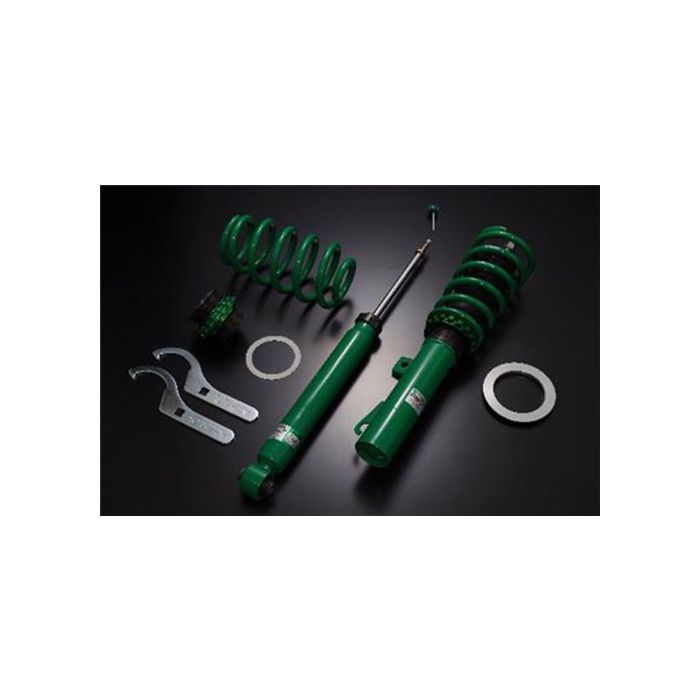

Tein 2012+ Subaru BRZ/Toyota 86/Scion FR-S (ZN6/ZC6) Street Advance Z Coilovers - GSQ54-9USS2
TEIN STREET ADVANCE Z Coilover Kit for Subaru BRZ ZCA FR 2017+ USA - GSQ54-9USS2
Elevate your driving experience with the TEIN STREET ADVANCE Z Coilover Kit, meticulously designed for the Subaru BRZ ZCA FR 2017+ models. This high-performance suspension system is engineered to deliver exceptional handling and comfort, making it the perfect upgrade for both daily driving and spirited weekend adventures.
- Enhanced Ride Quality: Experience a smoother ride with advanced damping technology that absorbs road imperfections, ensuring comfort without compromising performance.
- Adjustable Ride Height: Customize your vehicle's stance with ease, thanks to the adjustable ride height feature, allowing you to achieve the perfect balance between aesthetics and functionality.
- Durable Construction: Built with high-quality materials, this coilover kit is designed to withstand the rigors of daily use and harsh driving conditions, ensuring long-lasting reliability.
- Precision Handling: Enjoy improved cornering and stability with the expertly tuned suspension system, providing you with confidence and control on every turn.
- Easy Installation: Designed for straightforward installation, this kit comes with all necessary components and detailed instructions, making it accessible for both seasoned enthusiasts and newcomers alike.
Transform your Subaru BRZ into a finely-tuned machine with the TEIN STREET ADVANCE Z Coilover Kit. Whether you're navigating city streets or carving through mountain roads, this kit offers the perfect blend of comfort and performance, ensuring an exhilarating driving experience every time you get behind the wheel.
The TEIN STREET ADVANCE Z damper is the evolution of the popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using our new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. The unique ZT Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance. Each STREET ADVANCE Z has updated internal components and external coatings increase durability and product life. STREET ADVANCE Z dampers are great for daily driving and spirited driving for all types of drivers.
Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -65
- Max Low (inch): -2.6
- Max High (mm): -23
- Max High (inch): -0.9
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -23
- Recommended High (inch): -0.9
- Spring
- Rate (kgf/mm): 5
- Rate (lbs/in): 280
- SP PART#SW050-13175
- Free Length (mm): 175
- I.D. (mm): ID70
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -75
- Max Low (inch): -3
- Max High (mm): -4
- Max High (inch): -0.2
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#S8Q55-13060
- Free Length (mm): 225
- Year: 2017+
- Make: Subaru
- Model: BRZ
- Drivetrain: FR
- Chassis: ZCA
- Motor Size: 2000
- Vehicle Region: USA
- Rr: Edfc Motor Installation Needs Piston Rod Top Extension Kit.
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-Way Damping Adjustable with over 200% increase in damping force change.
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- One Year Warranty Against Manufacturer s Defects
- EDFC Compatible
| Brand | TEIN |
|---|
