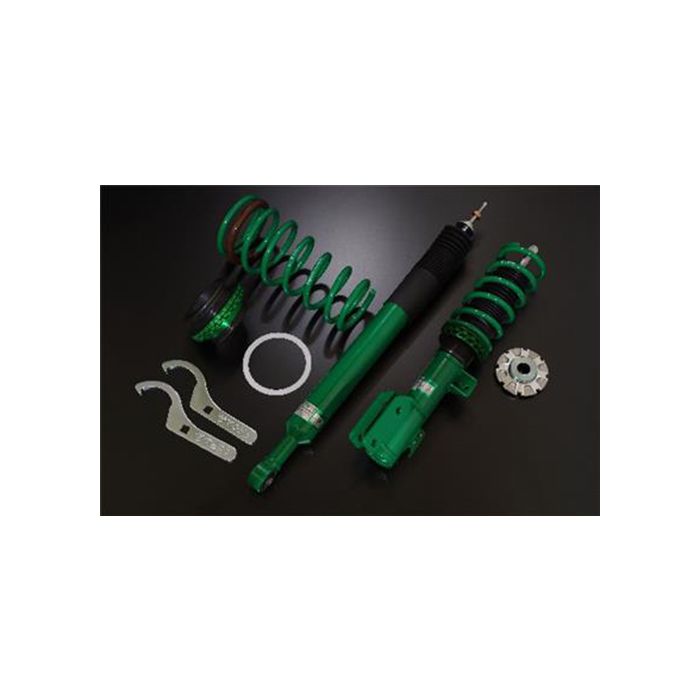

Tein 13+ Subaru BRZ Street Basis Z Coilovers - GSQ54-8USS2
TEIN STREET BASIS Z Coilover Kit for Toyota GT-86 ZNA FR 2017+ USA - GSQ54-8USS2
Transform your driving experience with the TEIN STREET BASIS Z Coilover Kit, specifically designed for the Toyota GT-86 ZNA FR 2017+ USA. This high-performance suspension upgrade offers a perfect blend of comfort and control, making it an ideal choice for both daily driving and spirited weekend adventures.
- Enhanced Handling: Experience superior cornering and stability with the STREET BASIS Z Coilover Kit, engineered to provide precise handling and improved road feedback.
- Adjustable Ride Height: Customize your vehicle's stance with ease. The adjustable ride height feature allows you to lower your car for a sportier look or raise it for added clearance.
- Durable Construction: Built with high-quality materials, this coilover kit ensures long-lasting performance and reliability, even under demanding conditions.
- Comfortable Ride: Enjoy a smooth and comfortable ride, thanks to the carefully tuned spring rates and damping settings that absorb road imperfections without sacrificing performance.
- Easy Installation: Designed for straightforward installation, the TEIN STREET BASIS Z Coilover Kit comes with all necessary components and detailed instructions, making it accessible for both seasoned enthusiasts and newcomers alike.
Upgrade your Toyota GT-86 with the TEIN STREET BASIS Z Coilover Kit and discover a new level of driving pleasure. Whether you're navigating city streets or carving through mountain roads, this kit delivers the perfect balance of comfort and performance.
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -68
- Max Low (inch): -2.7
- Max High (mm): -25
- Max High (inch): -1
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -25
- Recommended High (inch): -1
- Spring
- Rate (kgf/mm): 5
- Rate (lbs/in): 280
- SP PART#SW050-13175
- Free Length (mm): 175
- I.D. (mm): ID70
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -75
- Max Low (inch): -3
- Max High (mm): -4
- Max High (inch): -0.2
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#S8Q55-13060
- Free Length (mm): 225
- Year: 2017+
- Make: Toyota
- Model: GT-86
- Drivetrain: FR
- Chassis: ZNA
- Motor Size: 2000
- Vehicle Region: USA
- 2Dr/4Cyl
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
| Brand | TEIN |
|---|
