Tein 03-08 Toyota Matrix Street Basis Z Coilovers - GSL06-8USS2

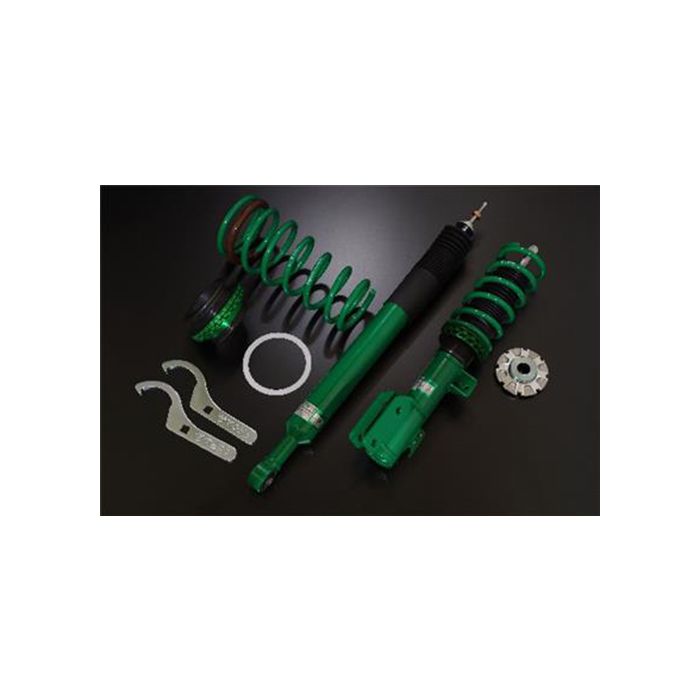

TEIN STREET BASIS Z Coilover Kit for Toyota Matrix ZZE133L FF 2003-2008
Transform your driving experience with the TEIN STREET BASIS Z Coilover Kit, specifically designed for the Toyota Matrix ZZE133L FF from 2003 to 2008. This high-performance suspension upgrade offers a perfect blend of comfort and control, making it an ideal choice for both daily driving and spirited weekend adventures.
- Enhanced Ride Quality: Enjoy a smoother, more comfortable ride with advanced damping technology that absorbs road imperfections effortlessly.
- Adjustable Ride Height: Customize your vehicle's stance to suit your style and driving needs with easy-to-use height adjustment features.
- Durable Construction: Built with high-quality materials, this coilover kit is designed to withstand the rigors of daily driving and harsh road conditions.
- Improved Handling: Experience sharper cornering and more precise steering response, thanks to the expertly tuned suspension setup.
- Corrosion-Resistant Coating: The kit features a special coating that protects against rust and corrosion, ensuring long-lasting performance.
- Easy Installation: Designed for straightforward installation, this kit comes with all necessary components and instructions for a hassle-free setup.
Upgrade your Toyota Matrix with the TEIN STREET BASIS Z Coilover Kit and enjoy a superior driving experience that combines comfort, style, and performance. Whether you're navigating city streets or exploring winding roads, this coilover kit delivers the perfect balance of agility and stability.
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -60
- Recommended Ride Height (inch): -2.4
- Ride Height Adjustable Range:
- Max Low (mm): -95
- Max Low (inch): -3.7
- Max High (mm): -42
- Max High (inch): -1.7
- Recommended Low (mm): -70
- Recommended Low (inch): -2.8
- Recommended High (mm): -50
- Recommended High (inch): -2
- Spring
- Rate (kgf/mm): 5
- Rate (lbs/in): 280
- SP PART#JC050-1F200-3
- Free Length (mm): 200
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -55
- Recommended Ride Height (inch): -2.2
- Ride Height Adjustable Range:
- Max Low (mm): -97
- Max Low (inch): -3.8
- Max High (mm): -33
- Max High (inch): -1.3
- Recommended Low (mm): -65
- Recommended Low (inch): -2.6
- Recommended High (mm): -45
- Recommended High (inch): -1.8
- Spring:
- Rate (kgf/mm): 3
- Rate (lbs/in): 168
- SP PART#S8L07-13030
- Free Length (mm): 235
- Year: 2003-2008
- Make: Toyota
- Model: Matrix
- Drivetrain: FF
- Chassis: ZZE133L
- Motor Size: 1800
- Vehicle Region: USA
- 5Dr/4Cyl/6-Speed, Do Not Fit Awd Or Xrs Model
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
| Brand | TEIN |
|---|
