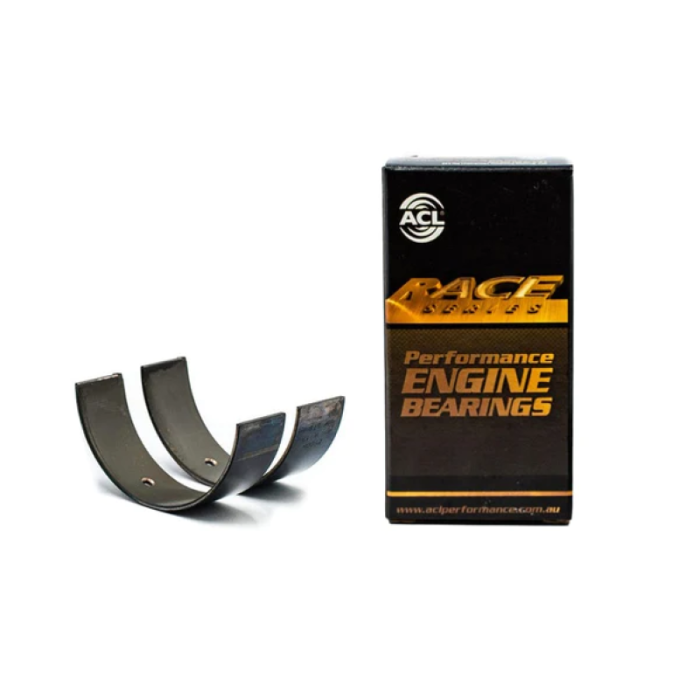

ACL Mitsubishi 4G63/4G64 7 Bolt 2nd Gen DSM and EVO I-IX Standard Size High Performance w/ Extra Oil - 4B1185HX-STD

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.

Features:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

• Size: STD
• Oil Clearance: +0.001' Extra
• Half Type: Upper & Lower
• Material: Tri-metal Hardened Steel Backs
• Min Std Shaft Size: 1.7709 in / 44.981 mm
• Max Std Shaft Size: 1.7715 in / 44.996 mm
• Min Std Tunnel Size: 1.8897 in / 47.998 mm
• Max Std Tunnel Size: 1.8095 in / 48.019 mm
• Max Wall at Crown: 0.0581 in / 1.475 mm
• Max Overall Length: 0.8307 in / 21.1 mm
