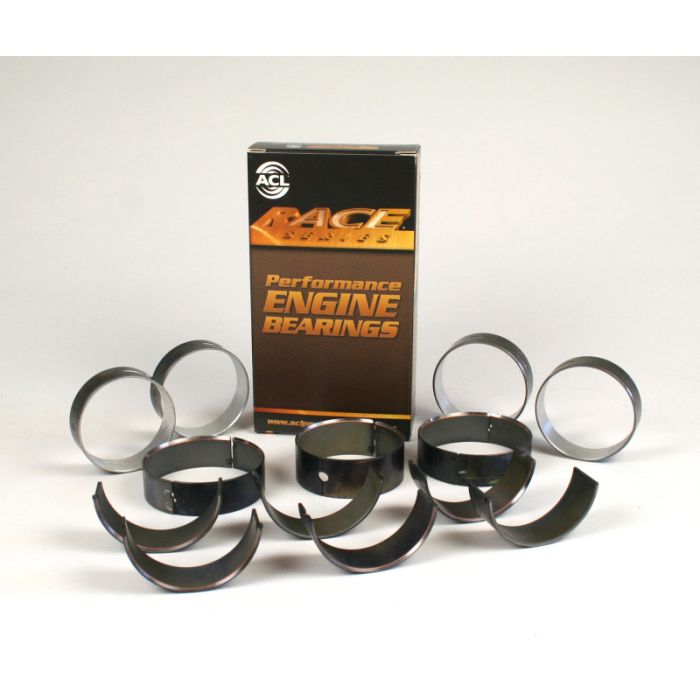

ACL Nissan GTR Standard Sized High Performance Main Bearing Set (Version 3 Block)- ACL-1M2505H-STD-4
ACL Nissan GTR Standard Sized High Performance Main Bearing Set (Version 3 Block) - ACL-1M2505H-STD-4
Unleash the full potential of your Nissan GTR with the ACL Standard Sized High Performance Main Bearing Set, designed specifically for the Version 3 Block. This premium bearing set is engineered to deliver exceptional performance and reliability, ensuring your engine runs smoothly under the most demanding conditions.
- Precision Engineering: Crafted with meticulous attention to detail, these bearings offer a perfect fit for your GTR's engine, reducing friction and wear for enhanced longevity.
- High Performance: Designed to withstand high loads and extreme temperatures, this bearing set ensures optimal performance even during intense driving sessions.
- Durability: Made from high-quality materials, these bearings provide superior resistance to fatigue and corrosion, ensuring your engine remains in peak condition.
- Improved Efficiency: By minimizing friction, these bearings help improve fuel efficiency and overall engine performance, giving you more power on the road.
- Easy Installation: Designed for straightforward installation, this bearing set allows you to upgrade your engine with minimal hassle.
Whether you're a seasoned racer or a performance enthusiast, the ACL Nissan GTR High Performance Main Bearing Set is an essential upgrade for anyone looking to enhance their vehicle's capabilities. Experience the difference in quality and performance with ACL's expertly crafted bearings, and take your driving experience to the next level.
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.
Features:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
- Size: Std-0, Std-1, Std-2,Std-3, Std-4
- Oil Clearance: Standard (Graded)
- Half Type: Upper & Lower
- Material: Material: Tri-metal Hardened steel Backs
- Min Std Shaft Size: 2.5571in /64.951mm
- Max Std Shaft Size: 2.5581in /64.975mm
- Min Std Tunnel Size: 2.7556in /69.993mm
- Max Std Tunnel Size: 2.7566in /70.017mm
- Max Wall at Crown: Std-0: 2.500-2.504mm/0.0984-0.0986in,Std-1: 2.505-2.509mm/0.0986-0.0988in,Std-2: 2.510-2.514mm/0.0988-0.0990in,Std-3: 2.515-2.519mm/0.0990-0.0992in,Std-4: 2.520-2.524mm/0.0992-0.0994in
- Max Overall Length: 0.7874in /20.00mm
| Brand | ACL |
|---|---|
| upc | 9315726435632 |
