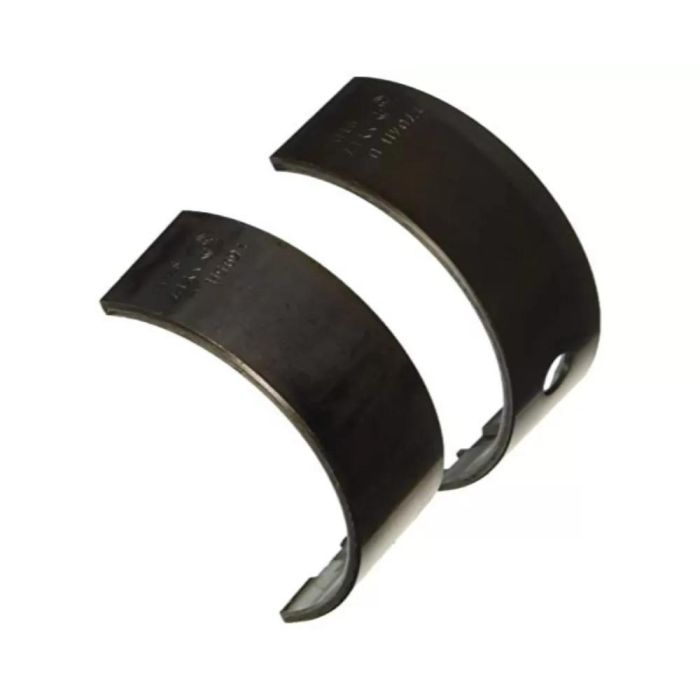

ACL Lexus V8 4.0L 1UZFE Standard Size Race Main Bearing Set - 5M8088H-STD
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.
Features:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
- Size: STD, .025, .25, .50
- Oil Clearance: Standard
- Half Type: Identical Halves
- Material: Tri-metal Hardened Steel Backs
- Min Std Shaft Size: 2.6373in / 66.987 mm
- Max Std Shaft Size: 2.6378in / 67.000 mm
- Min Std Tunnel Size: 2.8346in / 71.999mm
- Max Std Tunnel Size: 2.8352in / 72.014mm
- Max Wall at Crown: 0.0981in / 2.491mm
- Max Overall Length: 0.8858in / 22.5 mm
ACL Lexus V8 4.0L 1UZFE Standard Size Race Main Bearing Set - 5M8088H-STD aftermarket automotive part
This ACL Race Series main bearing set is a tri-metal engine bearing solution designed for high-RPM conditions in popular 4, 6, and 8 cylinder applications. It focuses on durability, oil film formation, and consistent clearances where engine loads and speeds are elevated.
SKU: acl5M8088H-STD
Key Benefits
- High-strength overlay plate with reduced thickness improves fatigue properties under load.
- Hardened steel backs support the bearing lining and aid housing retention.
- Increased crush helps improve bearing retention in the engine block.
- No flash plating on bearing backs improves heat transfer and housing grip.
- Increased eccentricity helps compensate for bore distortion at high rpm.
- 3/4 grooved mains balance load surface area with oil flow to conrods.
- Tight, consistent wall tolerances support maintaining consistent oil clearances.
Specifications
- Size: STD, .025, .25, .50
- Oil Clearance: Standard
- Half Type: Identical Halves
- Material: Tri-metal Hardened Steel Backs
- Min Std Shaft Size: 2.6373in / 66.987 mm
- Max Std Shaft Size: 2.6378in / 67.000 mm
- Min Std Tunnel Size: 2.8346in / 71.999mm
- Max Std Tunnel Size: 2.8352in / 72.014mm
- Max Wall at Crown: 0.0981in / 2.491mm
- Max Overall Length: 0.8858in / 22.5 mm
Built around performance-focused bearing design details such as enlarged ID chamfers (where required) and optimized oiling grooves, this set is intended to support stable hydrodynamic oil films and reliable operation at elevated engine speeds, while helping you keep consistent clearances during assembly.
