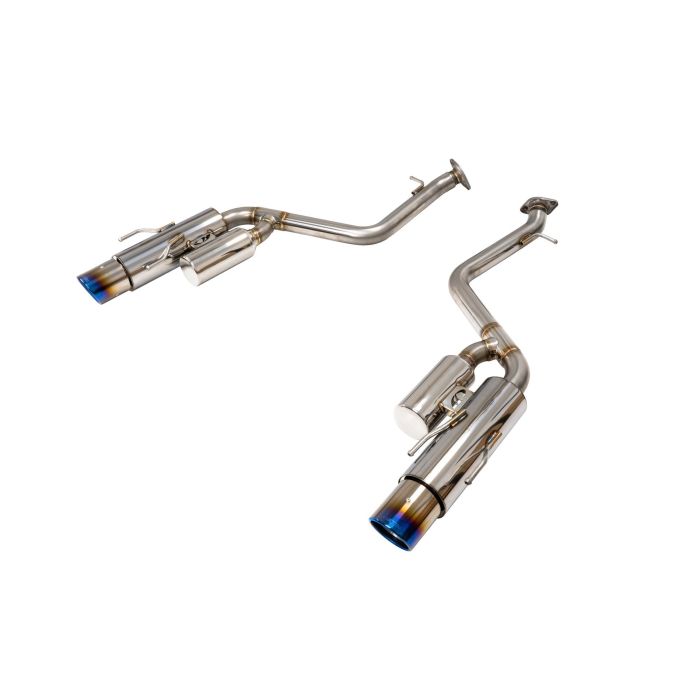

APEXi N1-X Evolution Extreme Stainless Steel Tips Axleback Exhaust - 2021+ Lexus IS300 / IS350 - APEX-164AKT20
2021+ Lexus IS300 (Turbo / AWD)
2021+ Lexus IS350
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number |
|
| Year | 2021+ |
| Make | Lexus |
| Model | IS300 Turbo / IS300 AWD / IS350 |
| Body Style | 4-Door Sedan |
| Engine | 2GR-FSE, 2GR-FKS, 8AR-FTS |
| Chassis | ASE30, GSE31, GSE36 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60.5mm. x 2 |
| Tip Diameter | 105mm. x 2 |
| Pieces | 2 |
| Exhaust Tip Style |
|
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | (SUS304) Stainless Steel or (TP270) Titanium |
| System Weight | |
| Special Notes |
Sound Level: 87 dB @ 4,500 RPM. Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components. ***NOTE: Do not use harsh car wash soap or metal polish cleaners when cleaning titanium tips. We recommend using 70% isopropyl alcohol with a microfiber towel to clean the titanium tips.*** |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
APEXi N1-X Evolution Extreme Stainless Steel Tips Axleback Exhaust - 2021+ Lexus IS300 / IS350 - APEX-164AKT20 aftermarket automotive part
Designed for 2021+ Lexus IS300 (Turbo/AWD) and 2021+ Lexus IS350, this axleback exhaust uses a straight-thru layout to focus on exhaust efficiency while maintaining a functional, resonant sound character through an internal hybrid silencer.
SKU: APEX-164AKT20. Built with TIG-welded SUS304 stainless steel, this N1 Evolution Extreme (N1-X) rear section is matched to select chassis and finishes with dual-wall, rolled, angle-cut stainless steel tips.
Key Benefits
- Straight-thru muffler layout emphasizes efficient exhaust flow through the rear section.
- Internal hybrid silencer balances free-flowing characteristics with functional sound resonance.
- TIG-welded SUS304 stainless construction supports durability and consistent fitment quality.
- Patented Megaphone piping structure promotes torque and throttle response across the powerband.
- Swirling exhaust gas flow effect is used to achieve proven Megaphone-style results.
- Modular design allows rear section interchange with certain factory exhaust components.
- Dual-wall, rolled, riveted tips deliver a clean, sport-oriented rear appearance.
Applications
- Year: 2021+
- Make/Model: Lexus IS300 Turbo / IS300 AWD / IS350
- Body Style: 4-Door Sedan
- Engines: 2GR-FSE, 2GR-FKS, 8AR-FTS
- Chassis: ASE30, GSE31, GSE36
Specifications
- Bolt-On: Yes
- Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
- Piping Diameter: 60.5mm x 2
- Tip Diameter: 105mm x 2
- Pieces: 2
- Exhaust Tip Style: Stainless Steel Round, dual wall rolled, angle cut (riveted)
- Piping Material: SUS304 Stainless Steel
- Muffler Material: SUS304 Stainless Steel
- Muffler Tip Material: (SUS304) Stainless Steel or (TP270) Titanium
Notes
- Sound Level: 87 dB @ 4,500 RPM.
- Modular design: Midpipe and rear section can be interchanged with factory components.
- Do not use harsh car wash soap or metal polish cleaners on titanium tips.
- For titanium tips, use 70% isopropyl alcohol with a microfiber towel.
This axleback system is intended as a direct bolt-on rear exhaust upgrade for the listed Lexus IS chassis, combining SUS304 stainless construction, a straight-thru N1-X muffler layout, and APEXi’s Megaphone piping approach. The modular rear section format supports flexibility when pairing with certain factory exhaust sections.
| Brand | APEXi |
|---|
