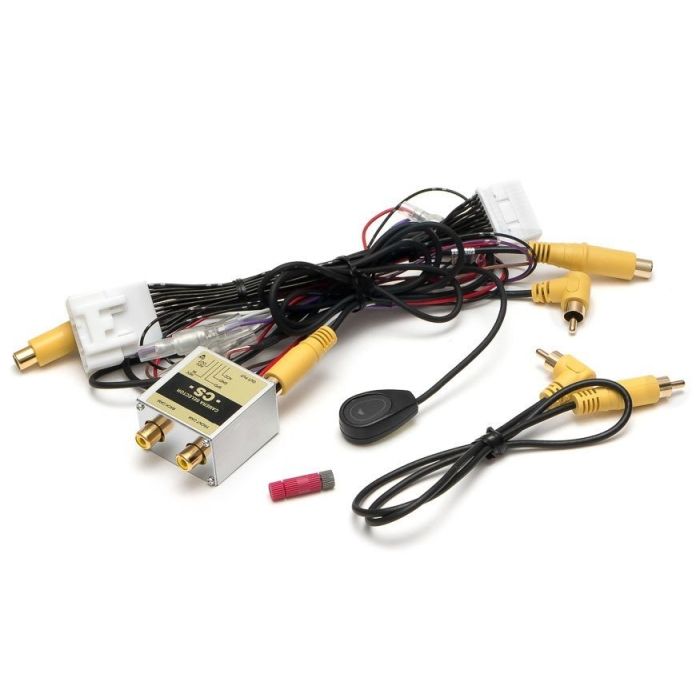

Beat-Sonic Lexus Front Camera Interface - CS11A

$199.00
sku
BEAT-CS11A

This product provides front camera connectivity for select 2014+ Lexus.
By pressing the selector button, the front camera is displayed for the duration pre-set using the inbuilt programmable timer. The timer is programmable for 5 sec, 10 sec, 15 sec, 20 sec or timer disable (i.e. push on / push off). In addition, the front camera can be programmed to automatically display at speeds less than 9mph to assist when front parking.

Beat-Sonic Lexus Front Camera Interface - CS11A aftermarket automotive part

This interface module adds front camera video to the factory Lexus screen while maintaining integration with the OEM rear camera and factory display. It is designed for seamless switching between sources using a dedicated control button and supports a programmable display timer.

SKU: BEAT-CS11A

Key Benefits

  • Switch between front camera, rear camera, and factory Lexus screen on demand.
  • Show the rear camera feed without shifting the vehicle into reverse.
  • Manual front camera activation via control button with timed display operation.
  • Programmable timer settings: 5, 10, 15, 20 seconds, or toggle mode.
  • Optional speed-sensor connection enables automatic front camera at under 9 mph.
  • Built-in video noise filter helps maintain high definition video resolution.
  • Plug-and-play installation with no modification or splicing to factory harness.

Specifications

  • Voltage: DC11V ~ 15V
  • Current consumption: 50mA of less
  • External dimensions: 40 x 25 x 57mm
  • Weight: 55g

Compatibility

  • 2014-2017 CT 200h
  • 2015-2019 ES 350
  • 2015-2019 ES 300h w/ factory navigation equipped model only
  • 2015-2019 GS 200t / 300 / 350 / 450h / GS-F
  • 2014-2022 GX 460 (without 360 / Bird's Eye View Camera only)
  • 2014-2019 IS 200t / 300 / 250 / 350
  • 2018-2022 LC 500 / 500h
  • 2015-2017 LS 460 / LS 600h w/ factory navigation equipped model only
  • 2018-2020 LS500 and LS500h
  • 2015-2019 NX 200t / 300 / 300h w/ factory navigation equipped model only
  • 2015-2019 RC 200t / 300 / 350 / RC-F
  • 2016-2020 RX 350 / 450h w/ factory navigation equipped model and no 360 camera only
  • 2019-2021 UX 250 / 200
  • Optional OE Button is only compatible with select Lexus models:
  • With button dimensions of 32mm x 22mm

Use this module to add front camera visibility for parking and low-speed maneuvering while keeping the factory infotainment experience intact. The configurable timer and optional low-speed auto-display support help tailor operation to daily driving, with a compact module designed to integrate cleanly with the Lexus wiring harness.

More Information
More Information
Brand Beat-Sonic
