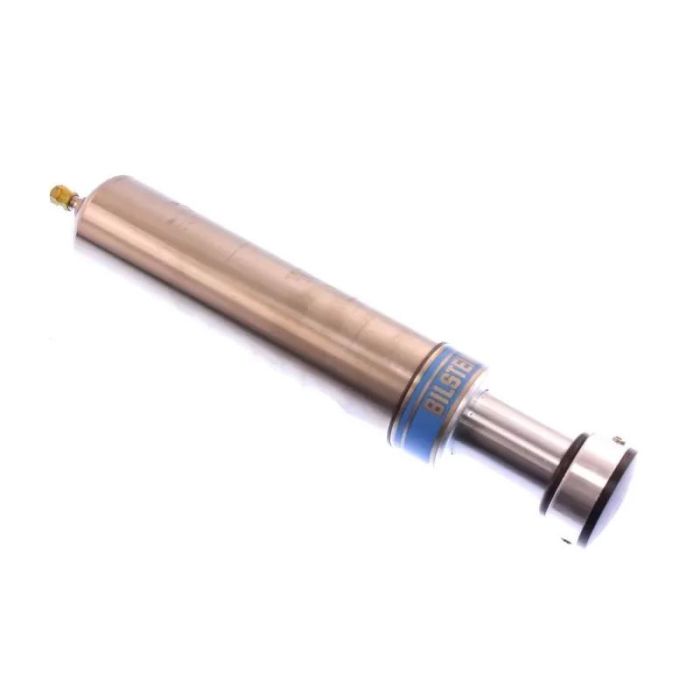

Bilstein 9100 Bump Stop Series 46mm Monotube Bump Stop - F4-BE5-G722-M0
Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
46mm Monotube Bump Stop
Features
- Extended Length (IN): 11.47
- Lower Mount Type: Special
- Compression @0.52m/s: Custom
- Upper Mount Type: Special
- California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- Body Design: Smooth Body (Non-Coilover)
- Collapsed Length (MM): 244.1
- Reservoir: No
- Finish: Nickel Plated
- Internal Design: Monotube
- Rebound @0.52m/s: Custom
- Extended Length (IN) Rounded: 11
- Title: Bilstein Shock Absorbers
- Mount Type: Special
- Collapsed Length (IN) Rounded: 10
- Extended Length (MM): 291.3
- Optional Reservoir Clamp: N/A
- Body Diameter (ID): 46mm
- Series: M 9100 (Bump Stop)
- Collapsed Length (IN): 9.61
Notes:
Universal Fitment: These products should work with your vehicle as they are universal for fitment. We do recommend the customer researches and does due diligence regarding application. This should help confirm that this will work for your vehicle.
Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
46mm Monotube Bump Stop
Features
- Extended Length (IN): 11.47
- Lower Mount Type: Special
- Compression @0.52m/s: Custom
- Upper Mount Type: Special
- California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- Body Design: Smooth Body (Non-Coilover)
- Collapsed Length (MM): 244.1
- Reservoir: No
- Finish: Nickel Plated
- Internal Design: Monotube
- Rebound @0.52m/s: Custom
- Extended Length (IN) Rounded: 11
- Title: Bilstein Shock Absorbers
- Mount Type: Special
- Collapsed Length (IN) Rounded: 10
- Extended Length (MM): 291.3
- Optional Reservoir Clamp: N/A
- Body Diameter (ID): 46mm
- Series: M 9100 (Bump Stop)
- Collapsed Length (IN): 9.61
Notes:
Universal Fitment: These products should work with your vehicle as they are universal for fitment. We do recommend the customer researches and does due diligence regarding application. This should help confirm that this will work for your vehicle.
| Brand | Bilstein |
|---|
