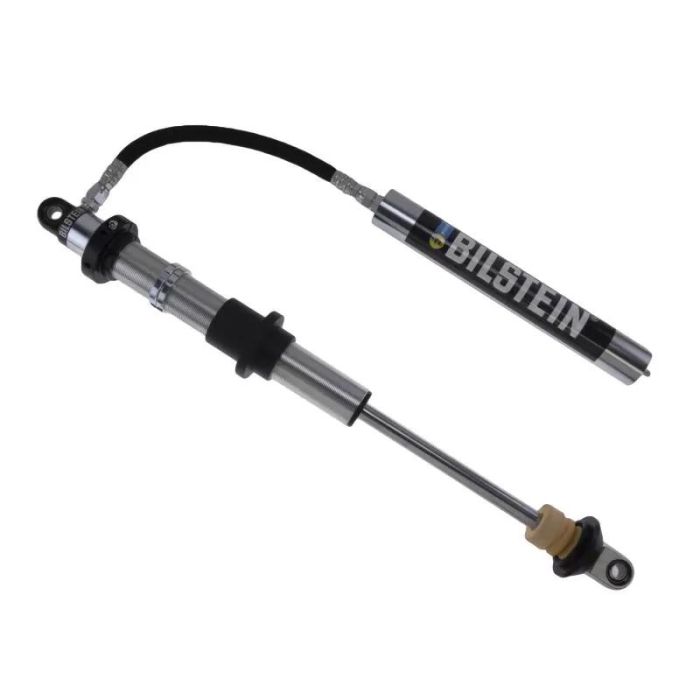

Bilstein 8125 Series 31.5in Extended Length 19.5in Collapsed Length 46mm Monotube Shock Absorber - 33-225548
Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.
46mm Coilover w/ Hardware
Features
- Upper Mount Type: Eye .5x1.5in
- Compression @0.52m/s: 1000
- Reservoir: Yes
- California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- Mount Type: Eye-to-Eye
- Extended Length (IN) Rounded: 32
- Finish: Zinc Plated
- Rebound @0.52m/s: 2550
- Collapsed Length (IN): 19.50
- Extended Length (IN): 31.50
- Lower Mount Type: Eye .5x1.5in
- Body Design: Threaded Body Screw Top (Coilover)
- Collapsed Length (IN) Rounded: 20
- Internal Design: Monotube
- Body Diameter (ID): 46mm
- Series: B8 8125
- Title: Bilstein Shock Absorbers
- Extended Length (MM): 800.1
- Optional Reservoir Clamp: B4-KT1-Z315A00
- Collapsed Length (MM): 495.3
Notes:
Universal Fitment: These products should work with your vehicle as they are universal for fitment. We do recommend the customer researches and does due diligence regarding application. This should help confirm that this will work for your vehicle.
