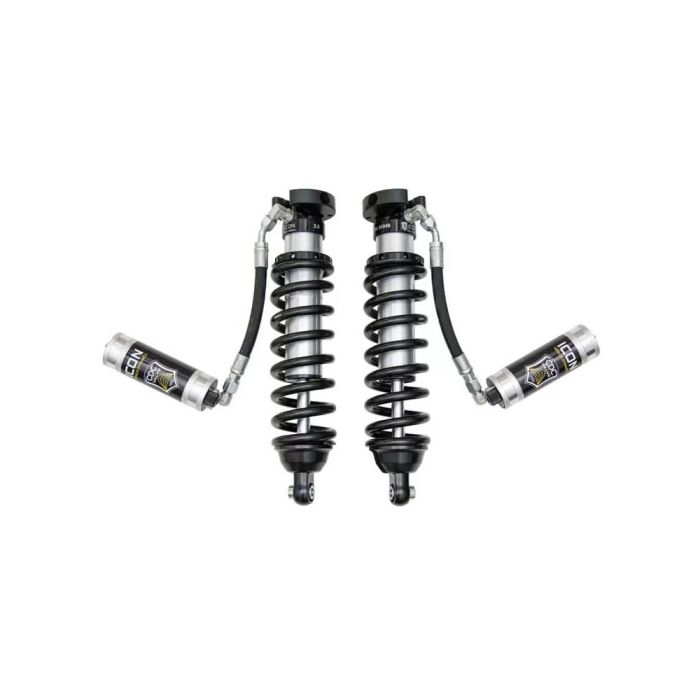

ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit - 58715C

View Installation Instructions

Specifications:

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: Yes
• Adjustable Height: yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: CENTER OF EYELET
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

• Factory Wheels & Tires Fitment: Yes
• Aftermarket Front Upper Control Arms Required For Installation

• Toyota Tacoma 4WD 1995-2004
• Toyota Tacoma Pre Runner RWD 1998-2004
