DeatschWerks 2020+ Toyota Supra (A90) DW440 Brushless 440lph In-Tank Fuel Pump w/ Install Kit - 9-442-0901

The DW440 brings brushless pump technology INTO the fuel tank. With a total height of only 4 inches (102mm), it is the only highflow aftermarket brushless pump that is easily retro-fitted into an OE pump module. Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.

Features:

• 440LPH at 40psi, 13.8v, 620LPH at 40psi, 20v
• Compact size is optimized for in-tank use

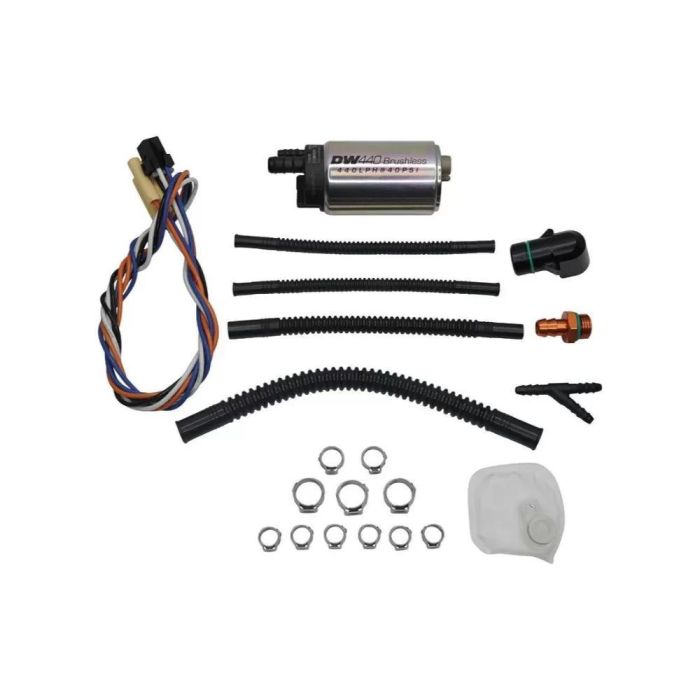

• Universal bulkhead harness and fitment kit included
• Compatible with all fuels including methanol and e100
• No brushes + No commutator = Ultimate Durability

• Weight: 9.2oz (260 grams)
• External Materials: Electroplated Steel
• Inlet Fitting: 8.5mm ID, 11.0mm OD
• Outlet Fitting: 3/8" Hose Clamp
• PRV Activation: >125 psi
• Impeller Design: Single Scroll Composite Turbine
• Connector Terminal: 4-Spade Brushless
• Min Voltage Input: 8 Volts
• Max Constant Voltage: 18 Volts
• Max Periodic Voltage: 22 Volts

• Toyota Supra 2020-2021

• Brushless pump must be used with a brushless pump controller (see DW part numbers C102, and C103.
