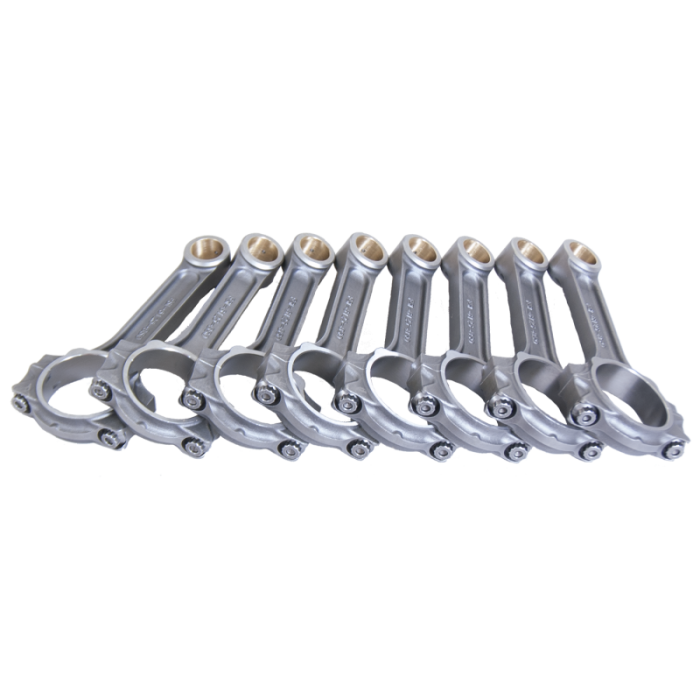

Eagle Chevroletrolet LS 4340 I-Beam Connecting Rod 6.125in (Set of 8)- EAGL-FSI6125O

Eagle FSI I-beam connecting rods are forged strong from 4340 steel. They are fitted with 7/16 in. ARP 8740 cap screw-style rod bolts, alignment sleeves for precise cap location, and silicone bronze pin bushings. Sizing is performed using the Sunnen Kross grinding system and is weight-matched to +/- 1 gram. Get your modified pump-gas racing engines cranking with FSI I-beam connecting rods from Eagle.Features:

• Quantity: Sold as a set of 8.
• Connecting Rod Length Center to Center (in): 6.125 in.
• Connecting Rod Beam Style: I-beam
• Connecting Rod Material: Forged 4340 steel
• Connecting Rod Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Cap screw
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 7/16 in.
• Connecting Rod Bolt Material: 8740 chromoly steel
• Fastener Yield Strength (psi): 180,000 psi
• Connecting Rod Bolt Head Style: 12-point
• Approximate Connecting Rod Weight (g): 605
• Rod Journal Diameter (in): 2.100 in.
• Big End Bore Diameter (in): 2.2250 in.
• Pin End Bore Diameter: 0.927 in.
• Big End Width (in): 0.940 in.
• Pin End Width (in): 1.000 in.
• Advertised Horsepower Rating: 800 hp
• Advertised RPM Rating: 8,000 rpm
• Weight Matched Set: Yes
• Remanufactured: No
• Magnafluxed: Yes

• Chevroletrolet V8 5.7L/350 1997-2004 | Chevroletrolet V8 5.3L/325 1999-2014 | Chevroletrolet V8 4.8L/294 1999-2017 | Chevroletrolet V8 6.0/364 1999-2019 | Chevroletrolet V8 7.0L/427 2006-2005 | Chevroletrolet V8 6.2L/376 2008-2017

• Block may need clearanced.
