Eagle Toyota/Lexus UZFE V8 5.751 Inch H-Beam Connecting Rods (Set of 8) - CRS5751T3D
Unleash your engine's potential with Eagle's H-beam connecting rods, crafted from high-strength 4340 steel. These rods are designed for durability and performance, offering a lightweight alternative to stock rods. Key features include:
- Set of 8 rods, each 5.751 inches in length
- Forged 4340 steel construction
- Shot-peened finish for stress relief
- Floating wrist pin style
- Includes ARP 8740 chromoly steel bolts
- Supports up to 750 horsepower
- Compatible with select Lexus and Toyota V8 engines

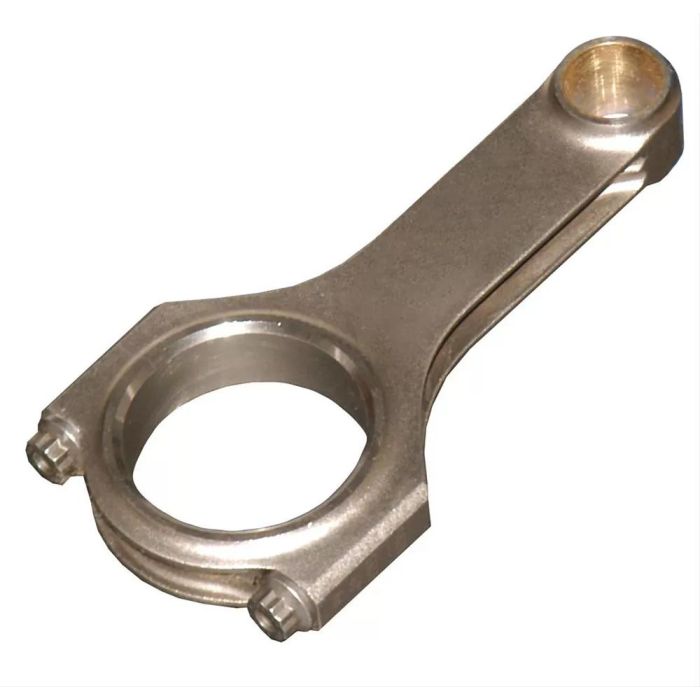

Eagle Toyota/Lexus UZFE V8 5.751 Inch H-Beam Connecting Rods (Set of 8) - CRS5751T3D performance upgrade part
Designed for Toyota/Lexus UZFE V8 applications, these H-beam connecting rods use forged 4340 steel and a shot-peened finish to support high-load engine builds while reducing weight versus many stock-style rods. Floating wrist pin compatibility and precision machining focus on repeatable fit and durability in performance use.
SKU: eagCRS5751T3D
Key Benefits
- Forged, vacuum-degassed, 4340-certified steel construction for high strength under load.
- Shot-peened finish helps stress-relieve the metal for improved fatigue resistance.
- Multi-stage heat-treated and 100 percent machined for consistent dimensional accuracy.
- X-rayed, sonic-tested, and magnafluxed processing supports quality-focused engine builds.
- Floating wrist pin style with silicon bronze bushings for proper pin-end support.
- Precision cap alignment sleeves positively locate caps for reliable big-end alignment.
- Includes ARP 8740 chromoly bolts with 12-point heads and cap screw retention.
Specifications
- Quantity: Sold as a set of 8.
- Connecting Rod Length Center to Center (in): 5.751 in.
- Connecting Rod Beam Style: H-beam
- Connecting Rod Material: Forged 4340 steel
- Connecting Rod Finish: Shot-peened
- Wrist Pin Style: Floating
- Clearanced for Stroker: No
- Cap Retention Style: Cap screw
- Connecting Rod Bolt Brand: ARP
- Connecting Rod Bolt Diameter: 7/16 in.
- Connecting Rod Bolt Material: 8740 chromoly steel
- Fastener Yield Strength (psi): 160,000 psi
- Connecting Rod Bolt Head Style: 12-point
- Approximate Connecting Rod Weight (g): 615
- Rod Journal Diameter (in): 2.047 in.
- Big End Bore Diameter (in): 2.1660 in.
- Pin End Bore Diameter: 0.866 in.
- Big End Width (in): 0.902 in.
- Pin End Width (in): 0.866 in.
- Advertised Horsepower Rating: 750 hp
- Weight Matched Set: No
- Remanufactured: No
- Magnafluxed: No
What’s Included
- Instructions
- Rod bolt lubrication
Applications
- Lexus V8 4.0L/3969vv 1990-2000
- Lexus V8 4.7L/4663cc 1998-2009
- Lexus V8 4.3L/4293cc 2010-2017
- Toyota V8 4.7L/4663cc 1998-2009
This set is configured as 5.751-inch H-beam rods with floating pin style and ARP hardware, targeting Toyota and Lexus V8 fitments listed above. Specifications such as journal and bore diameters are provided to support engine component selection and build planning without adding assumptions beyond the stated data.
