HKS 03-06 Evo 8/9 1.2mm Stopper head gasket (86mm bore 8.5 cr) - 23001-AM004
- HKS 03-06 Evo 8/9 1.2mm Stopper head gasket (86mm bore 8.5 cr) - 23001-AM004 ensures precise sealing for optimal engine performance and reliability.
- Upgrade your Evo 8 or 9 with a high-quality head gasket designed to prevent leaks and boost engine efficiency.
- Perfect for performance enthusiasts seeking durable gasket solutions that enhance power and maintain compression under pressure.
- Experience improved engine longevity and smoother rides by installing this specialized gasket tailored for Evo models.
- Don’t compromise on quality—add this essential Evo 8/9 head gasket to your cart now and elevate your build.
HKS Metal Head Gasket 1.2mm Mitsubishi EVO 03-06
HKS metal head gaskets are engineered to resist severe levels of heat that are generated by high-horsepower and high-boost applications. All HKS head gaskets are constructed with multiple layers of steel and coated with a special fluorine rubber to provide exceptional sealing. HKS head gaskets are designed to accommodate standard and certain oversized cylinder bores.
For most applications, multiple gasket thicknesses are available to change the dynamic compression ratio for various levels of tuning and engine conditions. (Note: HKS gaskets are not designed to cure sealing problems caused by head or block irregularities.)
The HKS Stopper-Type gasket consists of the maximum layers of plates possible and utilizes a molded stopper ring around each combustion chamber opening.
The HKS Bead-Type gasket features a raised bead structure around each combustion chamber to ensure a precise seal.
The HKS Grommet-Type Gasket employs a metal grommet around each combustion chamber, to ensure an excellent seal between the cylinder head and the engine block.
Gasket Type: Stopper
Bore: 86mm
Compression Ratio: 8.5
Thickness: 1.2mm
NOTE: COMPRESSION RATIOS LISTED ARE FOR COMPARISON PURPOSES ONLY, ACTUAL RATIO ACHIEVED MAY VARY DEPENDING ON APPLICATION.

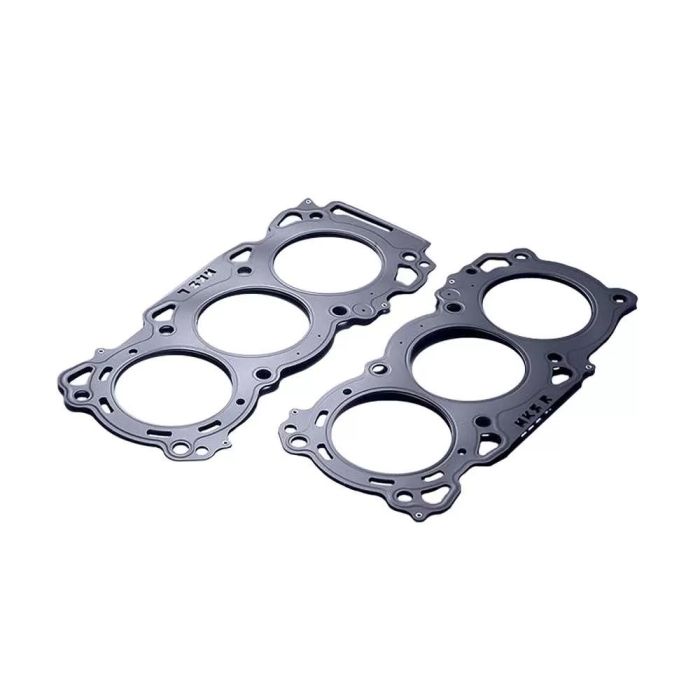

Note: Picture is for representation only, Actual product may vary.
| Brand | HKS |
|---|
