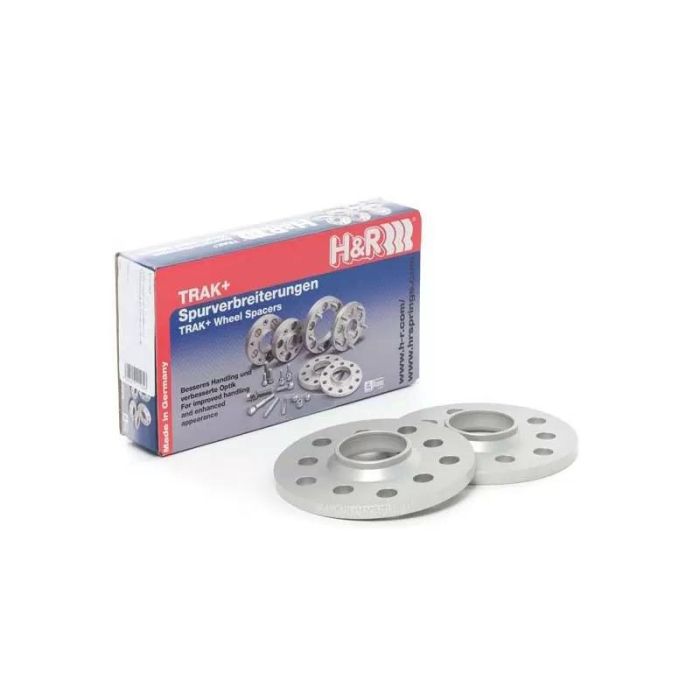

H&R Trak+ 15mm DRS Wheel Adaptor Bolt 4/100 Center Bore 54.1 Stud Thread 12x1.5 - 30245410

Wider is Better??! H&R TRAK+?? Wheel Spacers move your wheels and tires outwards so they are more flush with the fender-instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+?? you can fill the gap in your fenders and GO WIDE!

TRAK+?? Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+?? Wheel Spacers are hubcentric and feature a full contact hub-just like the factory hub-for even load force distribution and lateral support.

Select applications now also available in black hard anodized.

Features:

• Widen vehicle track with TRAK+?? Wheel Spacers
• 'Perfect fit' hubcentric design
• Durable lightweight aluminum/magnesium alloy
• Affordable and easy to install
• Bolt Pattern: 4/100
• Center Bore: 54.1
• Thread Type: 12x1.5
• Spacer Type: DRS
• Width: 15mm
• Stud Type

Fitment:

• Mazda Miata MX5, Type NB 99-05

Notes:

Depending on model, axle and year, Mazda vehicles have different diameters in the shoulder of the studs. Please see the following list for the measurements of the studs required for installation. The wheel spacers shown in the catalog will be supplied with shoulder bolts d=13.00. If you need d=14.85, please add a "1" at the end of the part number. DRS Wheel Spacers - Mazda DRS wheel spacers / required DRS shoulder Vehicle Model Shoulder Front Axle Shoulder Rear Axle 323 BG small 3.00 mm small 13.00 mm up to chas. no. 753743 up to chas. no. 773461 323 BG large 14.85 mm large 14.85 mm from chas. no. 753744 from chas. no. 773462 323 GT/GTR small 13.00 mm large 14.85 mm 323 BA/BJ large 14.85 mm small 13.00 mm 626 GE/GEA small 14.85 mm small 13.00 mm 626 GF/GV/GW small 14.85 mm large 13.00 mm MX 3 EC large 14.25 mm small 13.00 mm MX 5 NA small 13.00 mm small 13.00 mm up to chas. no. 133232 large 14.85 mm MX 5 NB small 13.00 mm large 14.85 mm MX 6 GE6 small 13.00 mm small 13.00 mm up to chas. no. 101861 up to chas. no. 101861 large 14.85 mm small 14.85 mm from chas. no. 101862 from chas. no. 101862 XEDOS 6/9 CA/TA small 13.00 mm small 13.00 mm *Information is subject to change without prior notice.

These vehicles have different shoulder diameters in the studs depending on model and axle. The DRS installation information must be carefully followed. If exchange of the studs is required, please call us at 1-480-966-3040.
