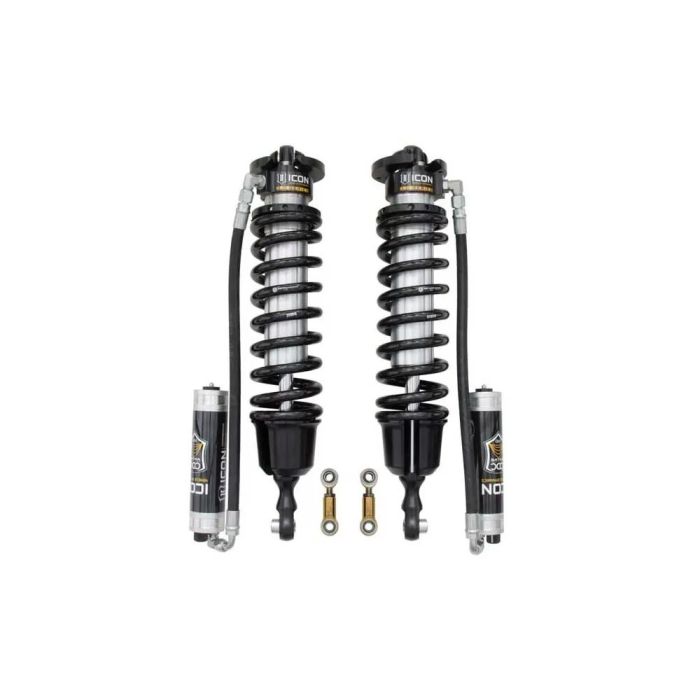

ICON 2007+ Toyota Tundra 3.0 Series Shocks VS RR CDCV Coilover Kit - 58755

While ICON's 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few Tundra owners seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.

View Installation Instructions

Features:

• Significant increase in damping ability for excellent performance in extreme off-road conditions
• Heavy duty 1" CNC machined shock shafts
• Multi stage CAD plated shock body with hard anodized piston and top cap
• Fully serviceable
• ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
• Adjustable coilovers provide 1.63-3.5" of front lift height over stock
• Direct bolt-in to OEM shock location makes for an easy install
• ICON's multi-stage, tuneable hydraulic "Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• 10" aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
• High quality ICON-engineered Eibach springs offer increased travel and performance
• PTFE lined COM12 spherical bearings ensure maximum strength and durability

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter: 3 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 6" Backspace / 25mm Offset
• Remote Reservoir: Yes
• Service Parts: 302005 - 3.0 ICON REBUILD KIT (ALL)
• Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter: 1 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: CENTER OF EYELET
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

• Factory Wheels & Tires Fitment: Yes

• Toyota Tundra 2007-2021
