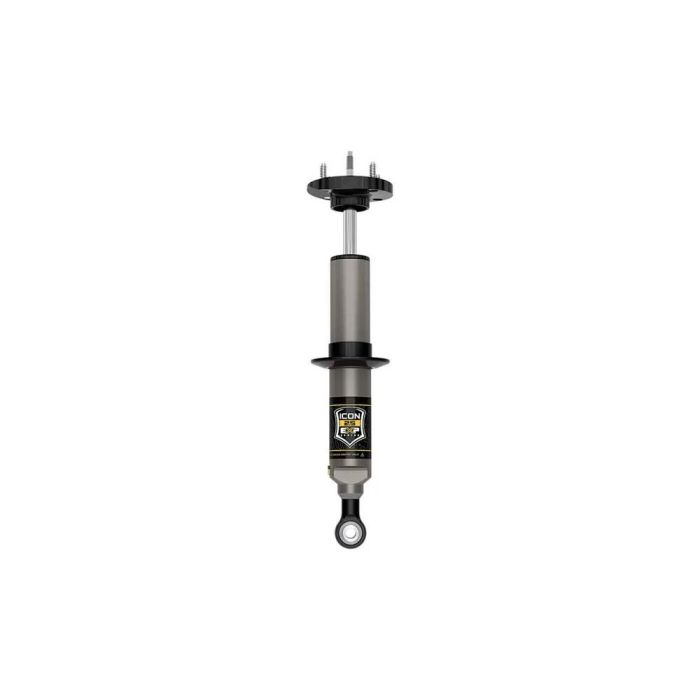

ICON 07-21 Toyota Tundra 2.5 EXP Front Coilover Shock - 58655

EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2007-2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.

View Installation Instructions

Features:

• Vehicle specific design for 2007-2021 Toyota Tundra
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2.25" of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: No
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 2.25 IN
• Minimum Lift: 0 IN
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Center of Eyelet
• Shock Absorber Rod End Measuring Point: Shoulder of Stem
• Upper Mount Type: Stem

• Trimming Required For Recommended Tire Size
• Not Compatible With Trd Pro
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Oem Wheels & Tires Fitment: Yes

• Toyota Tundra Limited 2007-2021
• Toyota Tundra SR5 2007-2021
• Toyota Tundra Base 2007-2021
• Toyota Tundra Platinum 2010-2021
• Toyota Tundra 1794 Edition 2014-2021
• Toyota Tundra SR 2014-2021
• Toyota Tundra Ltd 17-2017
• Toyota Tundra 1794 2018-2021
• Toyota Tundra TRD Off-Road 2020-2021
• Toyota Tundra TRD Sport 2020-2020
• Toyota Tundra Nightshade 2021-2021
• Toyota Tundra TRD Off-Road Premium 2021-2021
• Toyota Tundra TRD Sport Premium 2021-2021
• Toyota Tundra Trail 2021-2021
