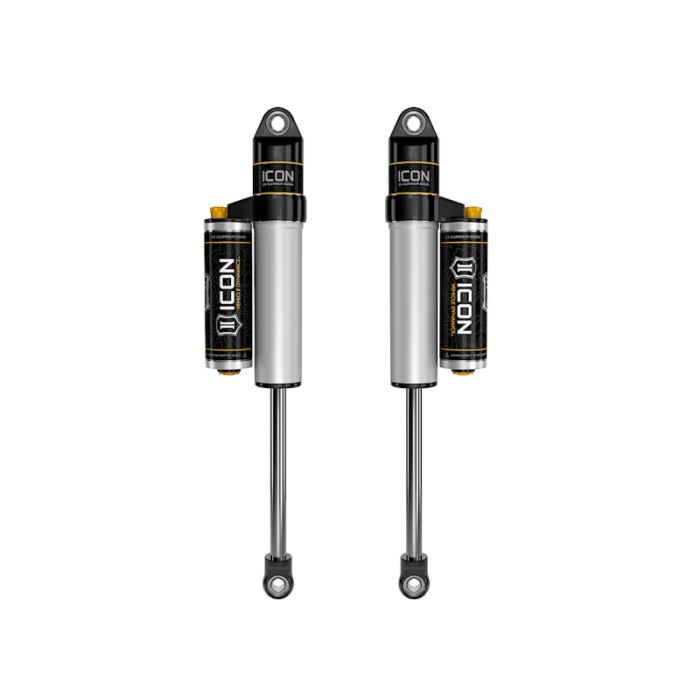

ICON 09-18 Ram 1500 0-3in Rear 2.5 Series Shocks VS PB CDCV - Pair - 217715CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

View Installation Instructions

Features:

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components

• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.25 IN
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: CENTER OF EYELET
• Shock Absorber Rod End Measuring Point: CENTER OF EYELET
• Upper Mount Type: EYELET

• Not Compatible With Models Equipped With Oe Air Suspension
• Compatible With 0-3" Of Rear Lift
• Compatible With 2019-2022 Ram 1500 Classic Models

• Ram 1500 SLT 2011-2018
• Ram 1500 Laramie 2011-2018
• Ram 1500 Sport 2011-2018
• Ram 1500 Tradesman 2011-2018
• Ram 1500 Laramie Longhorn 2011-2018
• Ram 1500 Outdoorsman 2011-2018
• Ram 1500 Big Horn 2011-2018
• Ram 1500 ST 2011-2018
• Ram 1500 SXT 2011-2018
• Ram 1500 Express 2012-2018
• Ram 1500 Tradesman HD 2012-2012
• Ram 1500 HFE 2013-2018
• Ram 1500 R/T 2013-2013
• Ram 1500 Lone Star 2014-2018
• Ram 1500 Special Service 2014-2018
• Ram 1500 Laramie Limited 2014-2018
• Ram 1500 Classic Express 2019-2022
• Ram 1500 Classic Tradesman 2019-2022
• Ram 1500 Classic Warlock 2019-2022
• Ram 1500 Classic ST 2019-2020
• Ram 1500 Classic Big Horn 2019-2019
• Ram 1500 Classic Laramie 2019-2019
• Ram 1500 Classic Lone Star 2019-2019
• Ram 1500 Classic SLT 2019-2019
• Ram 1500 Classic SXT Plus 2019-2019
• Ram 1500 Classic Special Service 2019-2019
• Ram 1500 Classic Night Edition 2021-2021
• Dodge Ram 1500 TRX4 2009-2010
• Dodge Ram 1500 Sport 2009-2010
• Dodge Ram 1500 SLT 2009-2010
• Dodge Ram 1500 ST 2009-2010
• Dodge Ram 1500 Laramie 2009-2010
• Dodge Ram 1500 TRX 2009-2010
