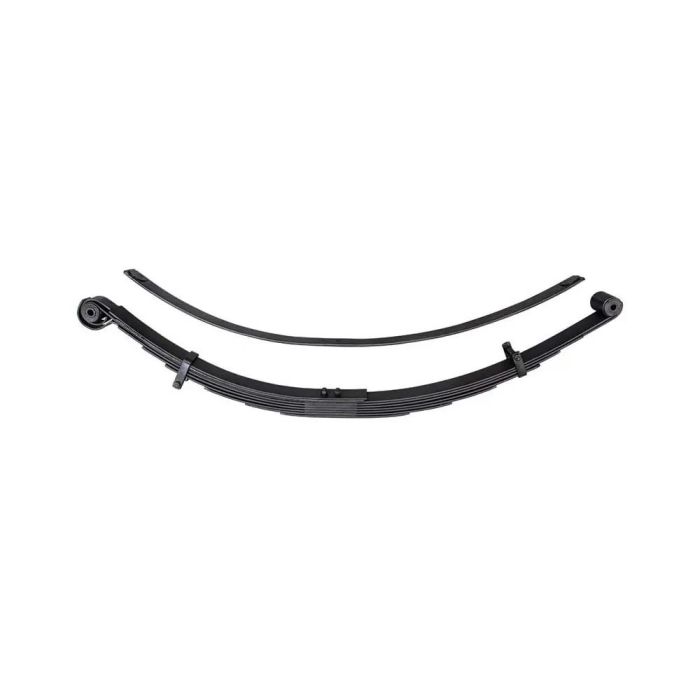

ICON 2017+ Ford Raptor Multi Rate Leaf Pack w/Add In Leaf - 198510
The Ford Raptor is an extremely capable truck that has captured the attention of the off-road community over the past few years. Since the Raptor's release ICON Vehicle Dynamics' engineers have pushed this vehicle to extremes to develop the most sophisticated suspension components on the market. From the brutal deserts of the Southwest, to the deep snow of Michigan's U.P., to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly. Unable to leave well-enough" alone, ICON is aiming to once again raise the bar in Raptor performance with the release of a multi-rate leaf spring that represents the latest component in the ICON complete suspension system for the Gen 2 Raptor.
View Installation Instructions
Features:
- 3 user-adjustable spring rates for unique vehicle setups
- Triple military wrap front eyelet and rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
- Direct bolt-in to OEM spring location makes for an easy install
- ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Axle Modification Needed: No
- Axle Orientation: Rear
- Bushing Color: Black
- Bushings Included: Yes
- Color: Black
- Helper Spring: No
- Leaf Quantity: 8
- Leaf Width: 3 IN
- Material: Steel
- Maximum Lift: 3 IN
- Mounting Hardware Included: Yes
- Suspension Grade Type: Performance
- U Bolts Included: No
- Compatible With Factory Shocks
- Does Not Require Modification Of Factory Exhaust System
- Hardware Kit Part # 95225H Required For Installation (Sold Separately)
- Icon Multi-Rate Leaf Springs Require Bump Stop Spacer Kit (Pn: 95226) If Icon'S Hydraulic Bump Stop Kit (Pn: 95121) Is Not Used
- Removal Of The Bed Is Not Required For Installation
- These Leaf Springs Are Sold Individually. A Quantity Of 2 Are Required Per Vehicle.
- Ford F-150 Raptor 17-20
The Ford Raptor is an extremely capable truck that has captured the attention of the off-road community over the past few years. Since the Raptor's release ICON Vehicle Dynamics' engineers have pushed this vehicle to extremes to develop the most sophisticated suspension components on the market. From the brutal deserts of the Southwest, to the deep snow of Michigan's U.P., to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly. Unable to leave well-enough" alone, ICON is aiming to once again raise the bar in Raptor performance with the release of a multi-rate leaf spring that represents the latest component in the ICON complete suspension system for the Gen 2 Raptor.
View Installation Instructions
Features:
- 3 user-adjustable spring rates for unique vehicle setups
- Triple military wrap front eyelet and rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
- Direct bolt-in to OEM spring location makes for an easy install
- ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Axle Modification Needed: No
- Axle Orientation: Rear
- Bushing Color: Black
- Bushings Included: Yes
- Color: Black
- Helper Spring: No
- Leaf Quantity: 8
- Leaf Width: 3 IN
- Material: Steel
- Maximum Lift: 3 IN
- Mounting Hardware Included: Yes
- Suspension Grade Type: Performance
- U Bolts Included: No
- Compatible With Factory Shocks
- Does Not Require Modification Of Factory Exhaust System
- Hardware Kit Part # 95225H Required For Installation (Sold Separately)
- Icon Multi-Rate Leaf Springs Require Bump Stop Spacer Kit (Pn: 95226) If Icon'S Hydraulic Bump Stop Kit (Pn: 95121) Is Not Used
- Removal Of The Bed Is Not Required For Installation
- These Leaf Springs Are Sold Individually. A Quantity Of 2 Are Required Per Vehicle.
- Ford F-150 Raptor 17-20
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103408880 |
