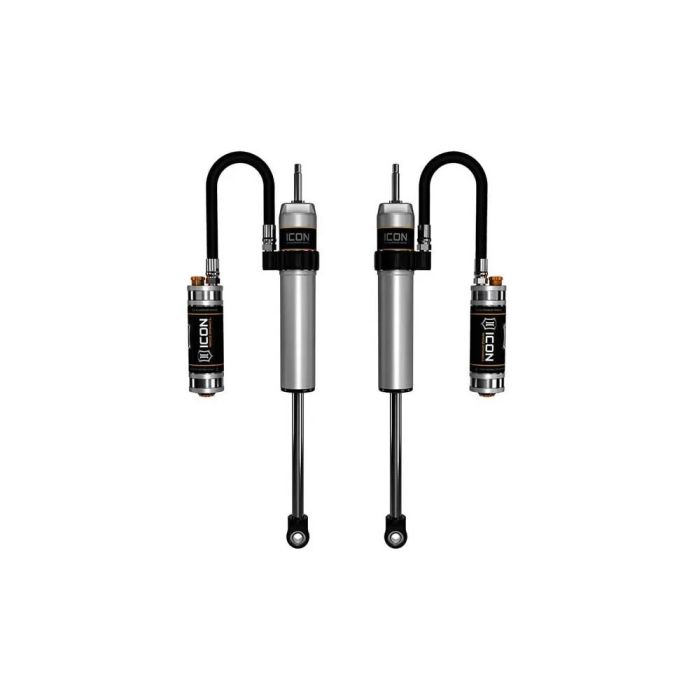

ICON 2014+ Ram 2500 2.5in Front 2.5 Series Shocks VS RR CDCV - Pair - 217802CP

Special Price $1,267.32 Regular Price $1,399.95
sku
ico217802CP
Free Shipping Banner
More than 2 in stock
Upgrade your 2014-Up Ram 2500 with the ICON 2.5" Lift Front 2.5 VS Remote/CDCV Shocks Pair. Experience superior performance and comfort on and off the road. - **Enhanced Ride Quality:** Smooths out rough terrain for a comfortable drive. - **Adjustable Damping:** Customizable settings for optimal control and stability. - **Durable Construction:** Built to withstand harsh conditions and heavy use. - **Improved Handling:** Provides better control and responsiveness. - **Easy Installation:** Designed for a straightforward setup. Transform your driving experience with these high-performance shocks.

ICON Vehicle Specific 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

View Installation Instructions

Features:

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 100% Rebuildable
  • 100% Revalveable
  • ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8" diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
Specifications:
  • Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
  • Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
  • Adjustable: Yes
  • Boot Included: NO
  • Bore Diameter: 2.25 IN
  • Cylinder Color: Silver
  • Cylinder Material: Aluminum
  • Damping Type: Oil
  • External Reservoir: Yes
  • Gas Charged: Yes
  • Grade Type: Performance
  • Lower Mount Type: EYELET
  • Mounting Hardware Included: Yes
  • Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
  • Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
  • Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
  • Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
  • Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
  • Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
  • Shaft Diameter: 0.875 IN
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Shoulder of Stem
  • Shock Absorber Rod End Measuring Point: CENTER OF EYELET
  • Tube Outside Diameter: 2.5 IN
  • Upper Mount Type: Stem
Fitment:
  • Ram 2500 4WD 2014-2022
  • Ram 3500 4WD 2013-2022
More Information
More Information
Brand Icon Vehicle Dynamics
upc 00840103401072
