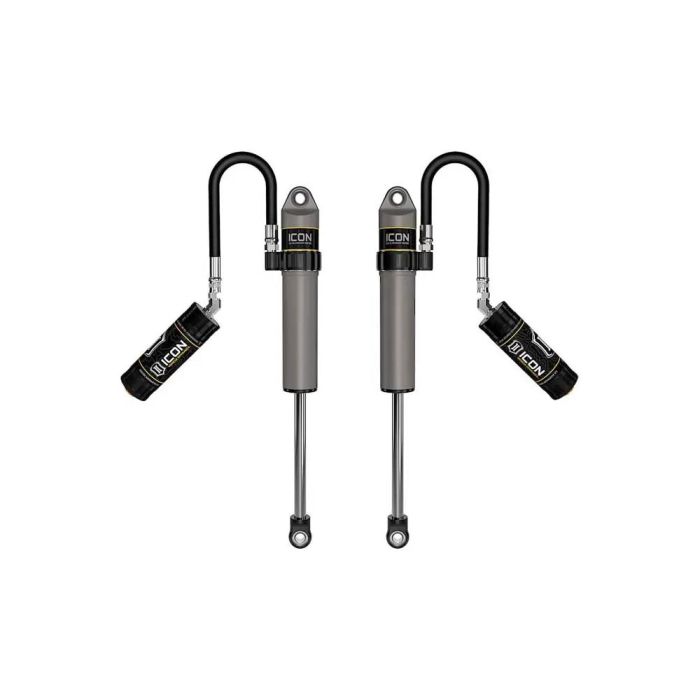

ICON 2018+ Jeep Wrangler JL 2.5in Front 2.5 Series Shocks VS RR - Pair - 27821P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

View Installation Instructions

Features:

• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)

• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 611070 - 20-UP JT MOJAVE FRONT 2.5 MISALIGNMENT SPACER KIT
• Adjustable: NO
• Boot Included: NO
• Bore Diameter: 2.25 IN
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257341S - 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter: 2.5 IN
• Upper Mount Type: Eyelet

• Gladiator Mojave Trim Requires 14Mm Misalignment Spacer Kit, Part # 611070.
• Only Compatible With Models Equipped With 3.6L V6 Gasoline Engine. Not Compatible With Wranglers Equipped With 3.6L V6 Etorque Engine.

• Jeep Gladiator Sport Pentastar 2020-2022
• Jeep Gladiator Overland Pentastar 2020-2022
• Jeep Gladiator Rubicon Pentastar 2020-2022
• Jeep Gladiator Sport S Pentastar 2020-2022
• Jeep Gladiator Mojave 2020-2022
• Jeep Gladiator Launch Edition 2020-2020
• Jeep Gladiator Altitude 2020-2020
• Jeep Gladiator Willys Pentastar 2021-2022
• Jeep Gladiator Willys Sport Pentastar 2021-2022
• Jeep Gladiator High Altitude Pentastar 2021-2022
• Jeep Gladiator 80th Anniversary Pentastar 2021-2021
• Jeep Wrangler Rubicon Pentastar 2018-2022
• Jeep Wrangler Sport S Pentastar 2018-2022
• Jeep Wrangler Unlimited Rubicon Pentastar 2018-2022
• Jeep Wrangler Unlimited Sport S Pentastar 2018-2022
• Jeep Wrangler Unlimited Sahara Pentastar 2018-2022
• Jeep Wrangler Unlimited Sport Pentastar 2018-2022
• Jeep Wrangler Sport Pentastar 2018-2022
• Jeep Wrangler Unlimited Moab 2018-2019
• Jeep Wrangler Rubicon Deluxe 2019-2020
• Jeep Wrangler Unlimited Rubicon Deluxe 2020-2020
• Jeep Wrangler Unlimited Rubicon Xtreme 2020-2020
• Jeep Wrangler Unlimited Willys Sport Pentastar 2021-2022
• Jeep Wrangler Unlimited Willys Pentastar 2021-2022
• Jeep Wrangler Willys Pentastar 2021-2022
• Jeep Wrangler Unlimited Sahara Altitude Pentastar 2021-2022
• Jeep Wrangler Unlimited Sport Altitude Pentastar 2021-2022
• Jeep Wrangler Islander Pentastar 2021-2021
• Jeep Wrangler Unlimited Islander Pentastar 2021-2021
• Jeep Wrangler Freedom Pentastar 2021-2021
• Jeep Wrangler Unlimited Freedom Pentastar 2021-2021
