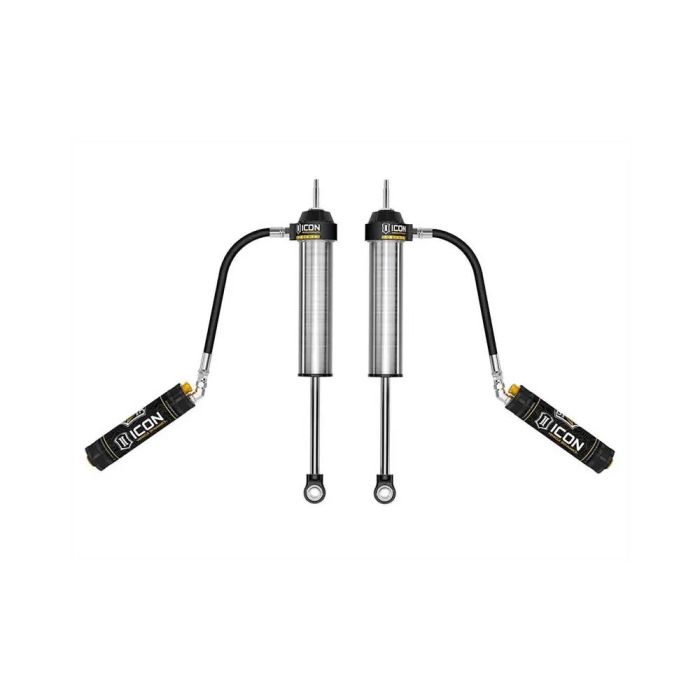

ICON 2022+ Toyota Tundra 0-1in Rear 3.0 Series Shocks VS CDCV RR - Pair - 57845CP

ICON's 3.0 Series Rear Shocks with CDCV for 2022-2023 Toyota Tundra/2023 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or 3" over stock on Sequoia.

View Installation Instructions

Features:

• 20% increase in rear suspension travel compared to stock
• Compatible with up to 1.5" of rear lift on most Tundra models or 3" of lift on Sequoia
• Vehicle specific design and tuning for superior shock damping and control
• 3.0" Body diameter for increased oil volume and larger piston area
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 7/8" diameter induction hardened, chrome plated shock shafts
• Corrosion resistant CAD plated steel shock bodies
• Fully Rebuildable and Re-tunable

• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.75 IN
• Cylinder Color: Grey
• Cylinder Diameter: 3 IN
• Cylinder Material: Steel
• Damping Adjustment Type: Manual
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Tube Outside Diameter: 3 IN
• Upper Mount Type: Stem

• Compatible With 0-1.5" Of Rear Lift On Non-Trd Tundras Or 0-1" Lift On Trd Tundras Equipped With Rear Coil Springs
• Compatible With 0-3" Of Rear Lift On 2023 Sequoias Equipped With Rear Coil Springs
• Compatible With 0-3" Of Rear Lift On Tundras Equipped With Rear Oe Load-Leveling Rear Height Control Air Suspension
• If Upgrading A Vehicle Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional

• Toyota Tundra SR 2022-2023
• Toyota Tundra SR5 2022-2023
• Toyota Tundra Limited 2022-2023
• Toyota Tundra Platinum 2022-2023
• Toyota Tundra 1794 Edition 2022-2023
• Toyota Tundra TRD Pro 2022-2023
• Toyota Tundra Capstone 2022-2023
• Toyota Tundra SR TRD Off-Road 2022-2022
• Toyota Tundra SR5 TRD Off-Road 2022-2022
• Toyota Tundra Limited TRD Off-Road 2022-2022
• Toyota Tundra Platinum 1794 Edition 2022-2022
• Toyota Sequoia SR5 2023-2023
• Toyota Sequoia Limited 2023-2023
• Toyota Sequoia Platinum 2023-2023
• Toyota Sequoia Capstone 2023-2023
• Toyota Sequoia TRD Off-Road 2023-2023
• Toyota Sequoia TRD Pro 2023-2023
