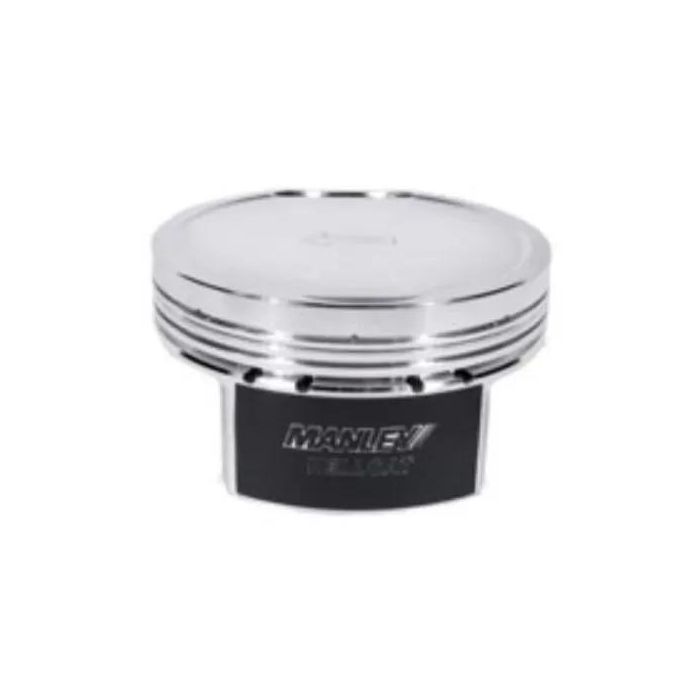

Manley Chrysler 6.2L Hemi Platinum Pistons 4.090in Bore -6.5cc Dish 3.579in stroke - 597900C-8

Today, Manley Performance continues to re-define itself in a high performance aftermarket industry that is constantly evolving. We've developed new products for growing markets such as sport compact, Ford modular and Chevy LS as well as maintained our leadership role with the traditional V-8 engine business.

Features:

• Forged 2618 high strength material lightweight design.
• Offset wrist pin design.
• Round wire locks.
• 1.2, 1.2, 2.5mm ring package with lateral gas ports.
• Other features include forced pin oiling and pressure balance groove.
• 2.300" x .210" wall Premium Chrome Moly pin (Standard Series) included.
• 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42542.

• Bore Size: 4.090"
• Over Size: STD
• Rod Length: 6.200"
• Stroke: 3.579"
• Comp. Distance: 1.278"
• Comp. Ratio: 9.5:1
• Pistons Wt / Gms: 456
• Dome Volume (cc): -6.5
• Piston Type: Dish
• Premium Steel Top Rings: 46132ST-8

• Dodge | Chrysler Hellcat

• These pistons are designed for connecting rods with .927" diameter floating wrist pins.
