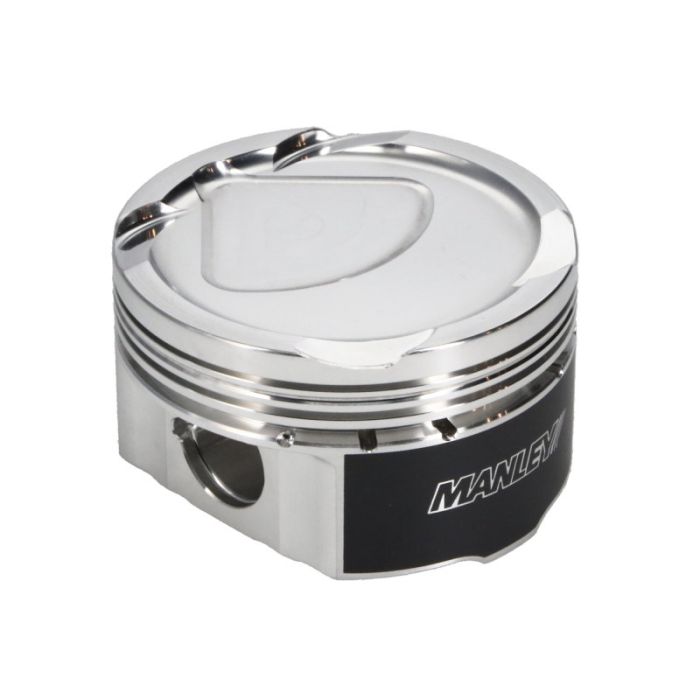

Manley 2013+ Subaru BRZ 86.50mm +.5mm Bore -11.4cc Dish 10.0:1 CR Platinum Series Piston Set - 632605C-4
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins (P/N 42251), premium steel top ring, Napier style second ring and higher tension oil ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy .210" wall upgraded wrist pins (P/N 42551) are available. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" from the bottom of the oil ring groove.
Specifications (FA20):
- Bore Size (mm): 86.50
- Over Size: +.5mm
- Rod Length: 5.090"
- Stroke: 86
- Comp. Distance: 1.285"
- Dome Volume (cc): -11.4
- Comp. Ratio: 10.0
- Piston Type: Dish
- Pistons Wt / Gms: 334
- Premium Steel Top Rings: 46866DT-4
- Subaru BRZ 2013 Up
- Toyota | Scion FR-S 2013 Up
- Sold as a Set of 4
| Brand | Manley |
|---|---|
| upc | 807298101040 |
