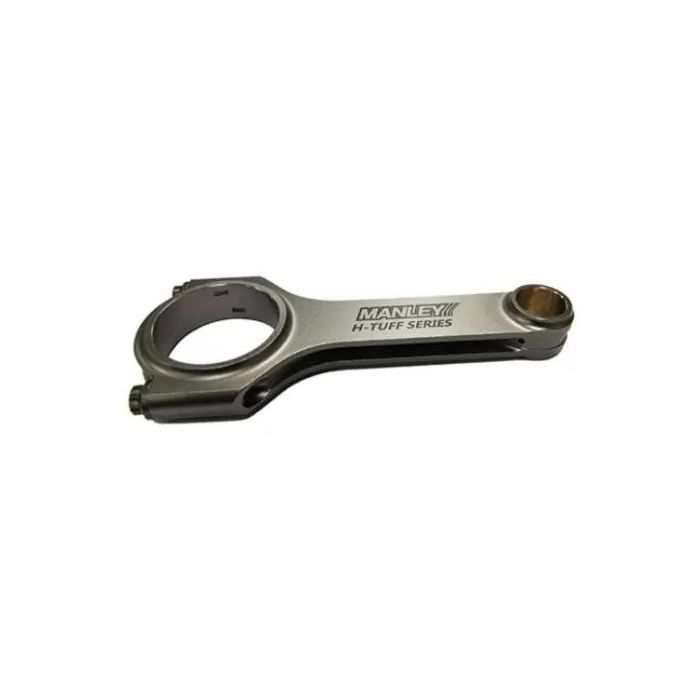

Manley ARP 2000 6.200" Pin Bore .9281" H-Tuff Beam Connecting Rod Set Chrysler | Dodge HEMI- MANL-15

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 7/16" ARP cap screws.

Features:

• Manufactured from 4340 forgings.
• Heat treated, stress relieved, shot peened and 100% magnafluxed.
• Weight matched sets + 1.5 grams.
• Cap fasteners are premium 7/16" ARP 2000 cap screws.
• Flywheel horsepower range for these rods: 1,000 HP (Oval Track), 1,200+ HP (Drag Race).
• Bridges the gap between our standard, proven H-Beams and top of the line, best of the best Pro Series I-Beam rods.
• H-Tuff delivers a stronger rod with greater safety margin to handle elevated boost and higher power levels for a modest price premium over standard H-Beams.
• H-Tuff design incorporates wider beam and increased cross-sectional thickness in critical areas along with a ribbed pin surround.

• Center-to Center: 6.200" 6.2/6.4L Stock Length w/ SB Chevy .927" Pin
• Big End Bore: 2.252"
• Big End Width: .933"
• Pin End Width: 1.000"
• Pin Bore: .9281"
• Gram Weight: 705

• Chrysler | Dodge HEMI 5.7L / 6.1L / 6.4L Stock Length with ARP 2000 Cap Fasteners
