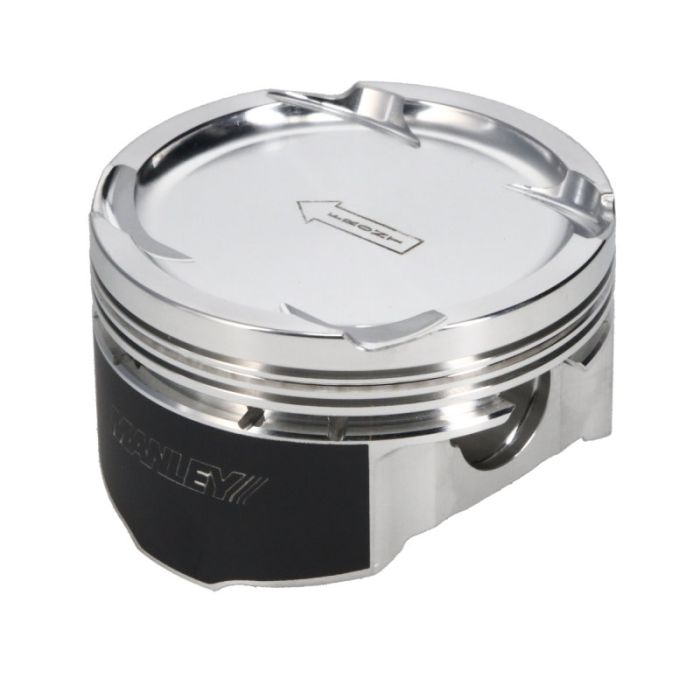

Manley 08+ Mitsubhi Evo X (4B11T) 94mm Stroker 86.5mm +0.5mm Bore 9.0:1 Dish Piston Set with Rings - 624005C-4
$699.23
sku
man624005C-4
More than 2 in stock
Rev up your Mitsubishi 4B11T engine with the Manley Platinum Series 86.5mm Stroker Pistons. Designed for the 2008-2012 models, these pistons deliver exceptional performance and durability.
- **Enhanced Performance**: Boosts horsepower and torque for a thrilling driving experience.
- **Precision Engineering**: Crafted with high-quality materials for superior strength and reliability.
- **Optimal Fit**: Specifically designed for the Mitsubishi 4B11T engine, ensuring seamless installation.
- **Durability**: Built to withstand high stress and temperatures, perfect for high-performance applications.
- **Lightweight Design**: Reduces engine load, improving efficiency and responsiveness.
Upgrade your ride with Manley’s cutting-edge technology.
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through a unique "one fixturing" manufacturing method that assures maximum horsepower.
Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.
- Lightweight design with offset wrist pin
- Premium steel top ring sets and round wire locks included
- Made for +1mm valve sizes
- Pressure balance groove
86.5mm 2.2L Stroker Piston Specifications:
- Bore Size : 86.5mm
- Over Size : + .5mm
- Rod Length : 143.66mm
- Stroke : 94mm
- Comp Distance : 1.155"
- Dome Volume : -11cc
- Cylinder Head : 49cc
- Comp Ratio : 9.0:1
- Piston Type : Dish
- Piston Weight : N/A
NOTE: Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring.
| Brand | Manley |
|---|---|
| upc | 807298073613 |
