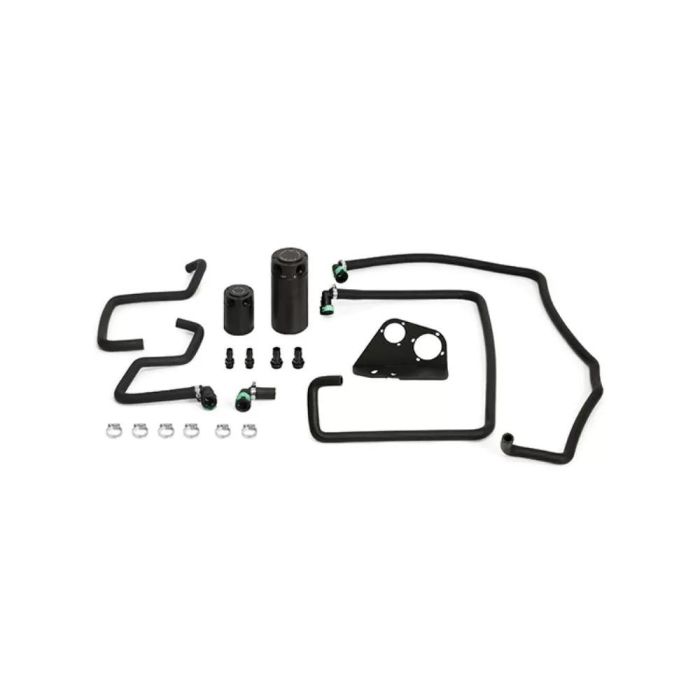

Mishimoto 15-16 Ford F-150 EcoBoost 3.5L Baffled Oil Catch Can Kit - Black - MMBCC-F35T-15SBE

Turbocharging and direct injection are quickly becoming the go-to method for building powerful and efficient trucks. However, if not carefully maintained, they can also mean the end for your 2015-2016 Ford F-150 3.5L EcoBoost. Direct injection makes the 3.5L EcoBoost one of the most efficient engines ever fitted to the F-150. But, without the benefit of fuel washing over the back of the intake valves, blow-by is free to accumulate in the form of carbon deposits. Eventually, those carbon deposits can choke your engine and reduce its performance. Thankfully, Mishimoto has a solution. Mishimoto's 2015-2016 Ford F-150 3.5L EcoBoost Catch Can Kit protects your intake tract and valves from the harmful effects of blow-by and carbon accumulation. The dual-can setup ensures that blow-by is routed away from your intake and valves in all driving conditions. Our road-proven 12 fl. oz. baffled catch can holds more blow-by for extended service intervals. Whether you're hard on the throttle or cruising around town, these cans have your engine's back. The powder coated, 3mm-thick steel bracket is strong enough to handle any terrain a work truck or daily driver will see, and the pre-installed quick-disconnect fittings make installation a breeze. Of course, this catch can kit is backed by our Mishimoto Lifetime Warranty so you can rest easy knowing your 2015-2016 F-150 3.5L EcoBoost is protected from blow-by for as long as you own it.

Features:

• Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
• Dual-can setup captures blow-by from both the PCV and CCV systems
• Includes oversized 12 fl. oz. can for longer service intervals
• CCV side accommodates stock pressure sensor for CEL-free running
• Application-specific lines fit with stock engine cover
• 3mm thick steel bracket won't bend, rattle, or break under heavy abuse
• Includes stock-style quick-disconnect fittings
• Filters and cans are fully serviceable
• Patent #US D884,760 S
• Mishimoto Lifetime Warranty

• (1) Application-Specific Mounting Bracket
• (1) 12 fl oz Black, Anodized 6061 Aluminum Catch Can
• (1) 3 fl oz Black, Anodized 6061 Aluminum Catch Can
• (5) Direct-Fit Hoses
• (4) Pre-Installed Quick-Disconnect Fittings
• (4) CNC-Machined Aluminum Barbed Fittings
• (2) Bronze Filters
• (2) Air Diverters
• (2) Internal Baffle & Rods
• (2) 3/8 NPT Plugs
• (2) Large O-Rings
• (6) Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

• Inlet: M16x1.5
• Outlet: M16x1.5
• Drain Plug Thread Size: 3/8 NPT
• Capacity: Large Can: 12 fl oz
  Small Can: 3 fl oz
• Material: 6061 Aluminum
• Install Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
• Baffled: True

• Engine Codes
  • 3.5L EcoBoost
• Fits
  • 2015-2016 Ford F-150 3.5L EcoBoost

• After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
