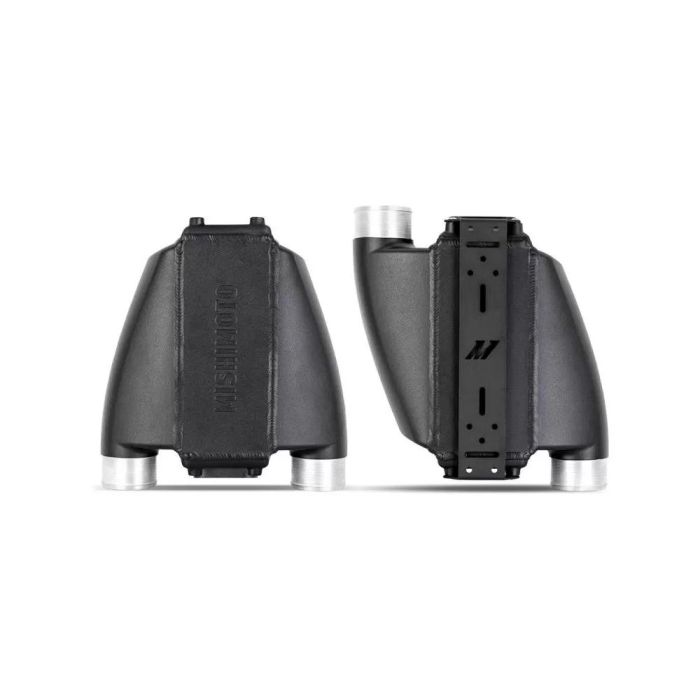

Mishimoto Universal Air-To-Water Intercooler Dual Pass (500hp) - Opposite Side Inlet/Outlet - MMINT-A2W-DPR-1
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status
Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers.
Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower.
When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping.
Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -12ORB coolant ports into the core and providing a sturdy 1/8" thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -12ORB Aluminum Fitting selection.
Features:
- Highly efficient air-to-water design delivers effective cooling in a compact package
- Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
- Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
- Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
- All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
- CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
- Sleek, subtle, and durable micro-wrinkle black powder coat finish
- -12ORB coolant ports provide leak-free line connections
- Includes robust 1/8" thick steel mounting bracket and hardware
- Abundant coolant line options with Mishimoto's -12ORB Aluminum Fittings
- Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
- Multiple core sizes to choose from to fit the needs of your project
- Mishimoto Lifetime Warranty
- (1) Mishimoto Air-To-Water Intercooler
- (1) Mounting Bracket
- (4) Mounting Bracket Bolts M6X1.0 X 16mm
- Mishimoto Lifetime Warranty
- Weight: 25lbs
- Coating: Powder Coated
- Tank Wall Thickness: 5mm
- Max Rec. PSI: 100
- Outlet: 500HP: 2.75
1000HP: 3.00
1500HP: 3.50 - Inlet: 500HP: 2.75
1000HP: 3.00
1500HP: 3.50 - Core Size: 500HP: 9.79 X 3.93 X 3.93
1000HP: 12.00 X 4.92 X 4.92
1500HP: 12.00 X 5.90 X 5.90 - Construction: Bar-and-Plate
- Overall Length: Same Side Inlet/Outlet: 13.61
Opposite Side Inlet/Outlet: 14.13 - Overall Height: 500HP: 9.25
1000HP: 10.75
1500HP: 12.37 - Overall Width: 500HP: 3.93
1000HP: 4.92
1500HP: 5.90
Unleash Performance with the Mishimoto 500 HP Air-to-Water Intercooler Opposite Side Dual-Pass Coolant Flow - MISH-MMINT-A2W-DPR-1
Elevate your vehicle's performance to new heights with the Mishimoto 500 HP Air-to-Water Intercooler Opposite Side Dual-Pass Coolant Flow - MISH-MMINT-A2W-DPR-1. Designed for those who demand the best, this intercooler is engineered to deliver exceptional cooling efficiency, ensuring your engine performs at its peak, even under the most demanding conditions.
Features and Benefits of the Mishimoto 500 HP Air-to-Water Intercooler Opposite Side Dual-Pass Coolant Flow - MISH-MMINT-A2W-DPR-1
- High-Performance Cooling: The dual-pass coolant flow design maximizes heat dissipation, allowing your engine to maintain optimal temperatures. This ensures consistent power delivery and prevents overheating, even during intense driving sessions.
- Compact and Efficient Design: With its compact size, this intercooler fits seamlessly into a variety of engine bays without compromising on performance. Its efficient design ensures that you get the most out of your engine without the need for extensive modifications.
- Durable Construction: Built with high-quality materials, the Mishimoto intercooler is designed to withstand the rigors of high-performance driving. Its robust construction ensures longevity, providing you with reliable performance for years to come.
- Easy Installation: The intercooler comes with all necessary hardware and detailed instructions, making installation straightforward. Whether you're a seasoned mechanic or a DIY enthusiast, you'll appreciate the hassle-free setup.
- Enhanced Engine Performance: By efficiently cooling the air entering your engine, this intercooler helps improve combustion efficiency. This results in increased horsepower and torque, giving you the edge you need on the track or the street.
The Mishimoto 500 HP Air-to-Water Intercooler Opposite Side Dual-Pass Coolant Flow - MISH-MMINT-A2W-DPR-1 is more than just a component; it's a commitment to excellence. Whether you're looking to enhance your vehicle's performance for competitive racing or simply want to enjoy a more responsive driving experience, this intercooler is the perfect choice.
Invest in the Mishimoto intercooler and experience the difference that superior engineering and design can make. With its advanced features and proven performance, it's the ultimate upgrade for any high-performance vehicle. Don't settle for anything less than the best—choose Mishimoto and drive with confidence.
| Brand | Mishimoto |
|---|---|
| upc | 840197701621 |
