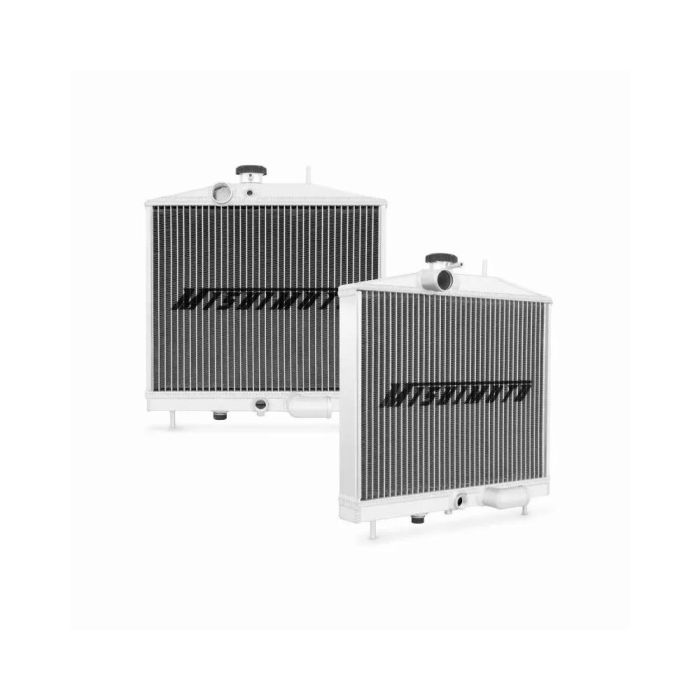

Mishimoto 92-95 Honda Civic / 93-97 Civic del Sol K-Series Swap Aluminum Radiator - MMRAD-K20-EG
Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps. Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind. This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. This radiator, paired with our K-Series Swap Silicone Radiator Hose Kit, is the perfect cooling solution for your boosted or N/A K-Swap.This aluminum radiator, like all Mishimoto radiators, comes with a 1.3 bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.
Features:
- Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
- Provides a bolt-in cooling solution, simplifying the engine swap process
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.57 thick, efficient brazed aluminum core
- Substantial fluid capacity and optimal heat dissipation
- Provides efficient heat exchange for naturally aspirated and forced induction vehicles
- Includes threaded fan switch port to function with stock sensor
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
- Mishimoto Radiator
- Mishimoto Radiator Cap
- Magnetic Drain Plug w/ Dowty Oil Seal
- Mishimoto Lifetime Warranty
- Lower Tank Thread Size: M18 x 1.5
- Material: Aluminum
- Overall Height: 15.04
- Upper Tank Thread Size: 1/8 NPT
- Drain Plug Thread Size: (M12) x 1.5
- Overall Length: 16.73
- Tank Wall Thickness: 0.08
- Outlet: 1.25
- Rows: 2
- Inlet: 1.25
- Dual Pass: False
- Overall Width: 4.02
- Core Length: 14.88
- Core Height: 11.61
- Core Thickness: 1.57
- Overall Length (in): 16.73
- Overall Height (in): 15.04
- Overall Width (in): 4.03
- Rows: 2
- Engine Codes
- K20
- Fits
- 1992-1995 Honda Civic EG
- 1993-1997 Honda Del Sol
Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps. Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind. This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. This radiator, paired with our K-Series Swap Silicone Radiator Hose Kit, is the perfect cooling solution for your boosted or N/A K-Swap.This aluminum radiator, like all Mishimoto radiators, comes with a 1.3 bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.
Features:
- Designed specifically for the 1992-1995 Honda Civic EG chassis with K-series engine swap
- Provides a bolt-in cooling solution, simplifying the engine swap process
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.57 thick, efficient brazed aluminum core
- Substantial fluid capacity and optimal heat dissipation
- Provides efficient heat exchange for naturally aspirated and forced induction vehicles
- Includes threaded fan switch port to function with stock sensor
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
- Mishimoto Radiator
- Mishimoto Radiator Cap
- Magnetic Drain Plug w/ Dowty Oil Seal
- Mishimoto Lifetime Warranty
- Lower Tank Thread Size: M18 x 1.5
- Material: Aluminum
- Overall Height: 15.04
- Upper Tank Thread Size: 1/8 NPT
- Drain Plug Thread Size: (M12) x 1.5
- Overall Length: 16.73
- Tank Wall Thickness: 0.08
- Outlet: 1.25
- Rows: 2
- Inlet: 1.25
- Dual Pass: False
- Overall Width: 4.02
- Core Length: 14.88
- Core Height: 11.61
- Core Thickness: 1.57
- Overall Length (in): 16.73
- Overall Height (in): 15.04
- Overall Width (in): 4.03
- Rows: 2
- Engine Codes
- K20
- Fits
- 1992-1995 Honda Civic EG
- 1993-1997 Honda Del Sol
| Brand | Mishimoto |
|---|---|
| upc | 748666001336 |
