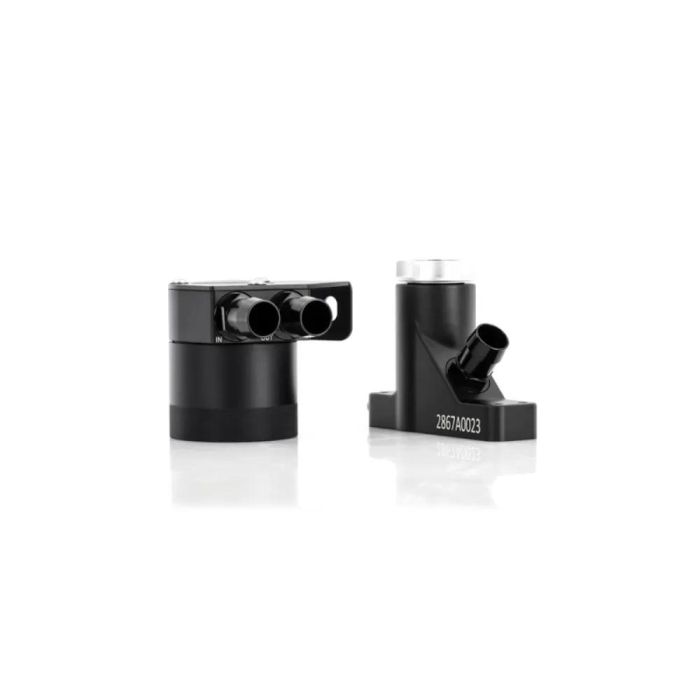

Mishimoto 2008-2010 Powerstroke Baffled Oil Catch Can Kit - MMBCC-F2D-08BE

High-output engines require high-flow crankcase ventilation. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning. To make this kit a direct fit for your 2008-2010 Ford 6.4L Powerstroke, Mishimoto includes a custom-engineered, 3mm-thick steel bracket. This bracket mounts the can in an easy-to-access location under the truck using existing mounting holes. This mounting location allows for quick and easy servicing, without even opening the hood. The catch can bracket is powder-coated black to protect it from the elements and includes stainless steel hardware to withstand the test of time. Our kit also includes a CNC-machined, black anodized, aluminum oil fill neck and machined aluminum cap. This fill neck doesn't just improve your truck's under-hood aesthetics, it also eliminates the stock air-oil-separator that drains blow-by vapors back into the engine, keeping your engine running cleaner. The durable Mishimoto aluminum oil cap replaces the failure-prone ratcheting cap so you never have to worry about a stuck cap preventing you from adding oil. Also included with this kit is a set of direct-fit hoses to carry blow-by away from your engine and into the Mishimoto catch can. For even more protection, this 2008-2010 Ford 6.4L Powerstroke Baffled Oil Catch Can is backed by our Mishimoto Lifetime Warranty.

Features:

• Direct fit for the 2008-2010 Ford 6.4L Powerstroke
• High-flow catch can allows your crankcase to breathe while filtering out harmful oil, fuel, and water vapors
• Durable 3mm-thick steel bracket mounts catch can under truck for easy servicing in minutes
• Includes CNC-machined billet aluminum oil fill neck to replace the stock air-oil-separator
• Included Mishimoto oil fill cap replaces failure-prone stock cap
• Prevents blow-by from contaminating engine oil
• Includes durable, CNC-machined aluminum hose barb fittings
• 5.3 fl. oz. capacity for extended service intervals
• Powder-coated bracket for maximum durability in all conditions
• Includes stainless steel mounting hardware
• Filter and can are fully serviceable
• Patent #US D884,761
• Mishimoto Lifetime Warranty

• (1) Application-Specific Mounting Bracket
• (1) Black, Anodized High-Flow Catch Can
• (1) CNC-Machined Aluminum Oil Fill Neck
• (1) Mishimoto Oil Cap
• (2) Direct-Fit Catch Can Hoses
• (2) CNC-machined Aluminum Barbed Fittings
• (4) High-Quality Worm Gear Clamps
• (1) Baffle w/ Polyurethane Filter
• (1) 3/8 NPT Plug
• (1) Large O-Ring Stainless Steel
• Mounting Hardware
• Mishimoto Lifetime Warranty

• Inlet: M27 x 2.0
• Outlet: M27 x 2.0
• Drain Plug Thread Size: 3/8 NPT
• Capacity: 5.3 fl. oz.
• Install Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
• Baffled: False

• Fits
  • 2008-2010 Ford F-250 w/ 6.4L Powerstroke
  • 2008-2010 Ford F-350 w/ 6.4L Powerstroke
  • 2008-2010 Ford F-450 w/ 6.4L Powerstroke
  • 2008-2010 Ford F-550 w/ 6.4L Powerstroke

• After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
