Mishimoto 04-11 Mazda RX8 Primary Replacement Oil Line - MMSBH-RX8-04

The Mazda RX-8 has a high-winding rotary engine capable of easily reaching 9,000 RPMs on a daily basis. With those revs comes very high oil temperatures. Most RX-8 models with manual transmissions were outfitted with dual oil coolers from the factory to keep the rotary engine's oil at a safe temperature during high speed driving and track situations. Unfortunately, over time, the stock rubber RX-8 oil cooler lines and steel fittings can severely corrode and degrade over time. The most frequent RX-8 oil cooler line to corrode is located on the left hand side of the car near the front suspension assembly. The design of the vehicle and location of the line are apt to collect dirt and road salt from winter. With the Mishimoto replacement oil line, not only is this problematic line replaced, it's replaced with a full braided stainless steel oil line and aluminum M18 to 10AN banjo fittings that will not corrode or break down over time. The Mazda RX-8 oil cooler line fits onto the vehicle with no additional modification, and does not require any cutting to your vehicle or permanent removal of parts. Keep your RX-8 protected and running smooth! As with all our products, this RX-8 oil cooler line includes the Mishimoto Lifetime Warranty.

Features:

• Direct fit replacement for the 2004-2008 Mazda RX-8
• Premade braided stainless steel oil line and aluminum fittings replace corrosion-prone stock rubber line
• Kit comes with the braided stainless steel line, M18 banjo bolts, and oil seals for a trouble-free installation
• Mishimoto Lifetime Warranty

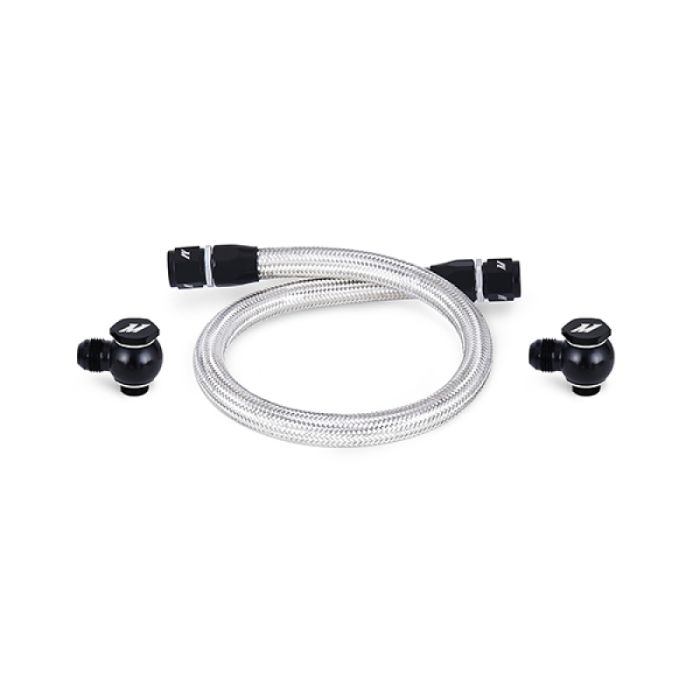

• (1) 2' 4 Stainless Steel Braided Hose w/ 90 Degree -10AN Fittings
• (2) M18 x -10AN Banjo Bolts w/ Dowty Oil Seals
• Mishimoto Lifetime Warranty

• Material: Stainless Steel
• Max Recommended PSI: 750psi
• Min Temp: -40??F
• Max Temp: +300??F
• Fitting Size: -10AN
• Caution: This oil line kit is designed to work with the stock oil coolers located in the front bumper. Supplied M18 banjo bolts and M18 straight fittings are designed to attach to your stock oil cooler. Make sure to check oil levels after installation and add oil if needed.

  Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.

• Engine Codes
  • 13B-MSP (Renesis)
• Chassis Codes
  • SE3P

• This oil line kit is designed to work with the stock oil coolers located in the front bumper. Supplied M18 banjo bolts and M18 straight fittings are designed to attach to your stock oil cooler. Make sure to check oil levels after installation and add oil if needed.Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
