Radium Engineering Pump Outlet Adapter - Check Valve - 10mm Barb - 20-0798

$45.12
sku
rad20-0798
Free Shipping Banner
More than 2 in stock
Upgrade your vehicle's performance with the Radium Engineering 10mm Barb Check Valve Pump Outlet Adapter. Designed for precision and reliability, this adapter ensures optimal fuel flow and system efficiency. - **High-Quality Construction**: Built to withstand high pressure and temperature. - **Enhanced Fuel System**: Prevents backflow, maintaining consistent fuel delivery. - **Easy Installation**: Simple to fit with a 10mm barb design. - **Durable Material**: Crafted from robust materials for long-lasting use. - **Versatile Compatibility**: Suitable for various automotive applications. Optimize your fuel system with this essential component for superior performance.

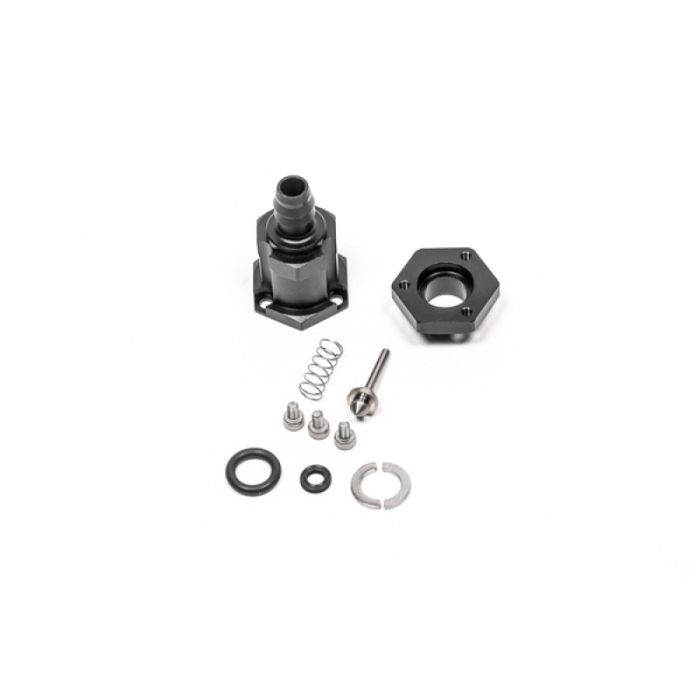

This adapter is used to integrate a high flow check valve on the outlet of many fuel pumps. The valve outflows the integrated check valve that comes standard on many fuel pump outlets. Furthermore, decreasing this restriction allows the pump to operate at less current. This keeps fuel temperatures lower and prevents cavitation. The two billet aluminum adapter halves are secured together with a stainless steel retainer and bolts that clamp tightly around the pump outlet. A stainless steel plunger and spring are used for making a one-way connection. FKM O-rings seal for a leak free connection and E85 compatibility.

There are 2 outlet variations available (6AN male above, 10mm barb below). Both version secure to the fuel pump in the same exact manner.

TEST COMPARISON

We have tested fuel pumps with and without check valves. With any check valve, flow and current draw will be affected. The two check valves tested were the standard integrated pump outlet check valve and the Radium Engineering check valve.

Standard integrated check valve
Flow Restriction: 46-76 LPH
Current Draw: 3.2-4.8 Amps

Radium Engineering check valve
Flow Restriction: 15 LPH
Current Draw: 0.5 Amps

FUEL PUMP COMPATIBILITY

The Radium Engineering check valve is very specific to the pump. It will only work on pumps listed below. NOTE: Before ordering, make sure the pump outlet hose barb ridges are in excellent condition. Damaged or non-round hose barb ridges may prevent the O-ring from obtaining a positive seal.

Compatible. These pumps did NOT come standard with a check valve, thus are perfect candidates for the Radium Engineering check valve:

  • TI Automotive E5LM (BKS1000 Brushless Controller Kit)
  • TI Automotive E5LM (BKS1001 Brushless Controller Kit)
  • Walbro/TI Automotive F90000295
  • Bosch Motorsports BR540
  • Deatschwerks DW400 (pre May 2019)
Not Compatible. The check valve will physically fit these pumps, but they come standard with an integrated check valve that can NOT be removed.
  • Walbro/TI Automotive F90000267
  • Walbro/TI Automotive F90000274
  • Walbro/TI Automotive F90000285
  • Deatschwerks DW400 (post May 2019)
