Radium Engineering Fuel Pulse Damper - XR 8AN ORB - Swivel - 20-0777

$94.95
sku
rad20-0777
Free Shipping Banner
More than 2 in stock
Introducing the Radium Engineering 8AN ORB FPD-XR Swivel - RADI-20-0777, a top-tier component designed for precision and reliability in fluid delivery systems. - **Enhanced Flexibility:** Swivel design allows for easy installation and adjustment. - **Durable Construction:** Built with high-quality materials for long-lasting performance. - **Optimal Flow:** Ensures efficient fluid transfer with minimal resistance. - **Versatile Compatibility:** Suitable for a wide range of applications and systems. - **Leak-Proof Seal:** Engineered to prevent leaks and maintain system integrity. Upgrade your setup with this essential component for superior performance and peace of mind.

The opening and closing of fuel injectors creates pressure pulses in the fuel rail this can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a fuel pulse damper (FPD) is often necessary. The FPD's internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help idle surge, especially with high flow injectors. Furthermore, a fuel pulse damper can help solve erratic lean air/fuel ratio spikes, commonly experienced as "stumbling", that are difficult to tune out.

Fuel pulse dampers can be mounted at any angle, including upside down. There are many variables that dictate if a fuel system requires fuel pulse dampers. For instance, there are cases where multiple dampers are necessary. There are also other times when the fuel system benefits with a fuel pulse damper on the return line.

What makes Radium FPDs unique?

Along with having the flexibilty of using common fittings, Radium Engineering FPD's use a vacuum/boost reference port which allows for proper fuel pulse damper performance even at elevated fuel pressures. This becomes essential for boosted systems that use a 1:1 rising rate fuel pressure regulator.

What is the difference between FPD-R and FPD-XR?

The FPD-R (green top) is slightly shorter than the FPD-XR (black top) allowing it to be used in space-contrained applications.

WHICH DAMPER DO I CHOOSE?

The FPD-R (Fuel Pulse Damper-Range) and FPD-XR (Fuel Pulse Damper-Extra Range) both have unique base "static" fuel pressure requirements:
FPD-R base pressure requirement = 40 - 70psi (static)
FPD-XR base pressure requirement = 40 - 105psi (static)

Base pressure is the fuel pressure measured when the fuel pump is running WITHOUT a vacuum line connected to the regulator.

Features:

  • Male Fitting Selection: a. The 8AN ORB versions seal using a FKM O-ring. | b. The 3/8" NPT variations seal with the tapered pipe threads.
  • Vacuum Port Orientation: a. Even after tightened, the newest 8AN ORB dampers (20-0777), will swivel permiting the vacuum port to be clocked 360 degrees. | b. Because 20-0178 and 20-0179 use tapered threads (NPT), the vacuum port can be clocked to the desired location.
  • This product is safe for use with all fuel types including alcohol blends such as E85.

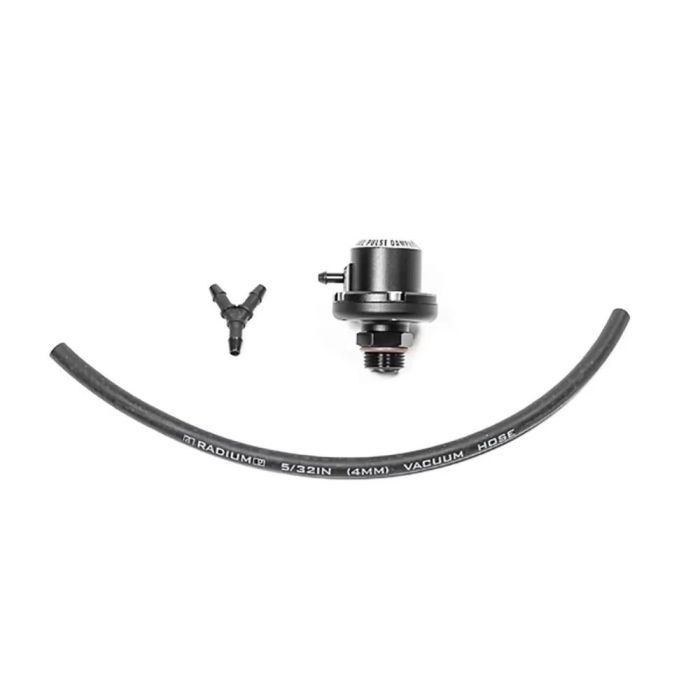

Included:
  • Anodized and laser engraved aluminum top, R=range or XR=extra range
  • Anodized aluminum body with male threads, 8AN ORB or 3/8" NPT
  • Stainless steel hardware
  • Rubber vacuum hose, 4mm ID
  • Vacuum hose Y-fitting
Important:
  • The ranges above are base static fuel pressures only. Any dynamic fuel pressure created by a rising-rate FPR outside of this range is acceptable, but only when the base "static" fuel pressure is set within these ranges and the vacuum/boost reference line is connected.
Note:
  • Not to be used on the Low Pressure side of mechanical fuel pumps (Including Direct Injection Engines).
More Information
More Information
Brand Radium Engineering
