Radium Engineering Fuel Level Diagnostic Indicator- RADI-20-0508

This switch is only compatible with the Radium Multi-Pump Fuel Surge Tanks (MPFST) and the Radium Fuel Cell Surge Tanks (FCST). Both of these products have specially machined ports that are labeled "Level Switch."

20-0508 Fuel Level Diagnostic Indicator

• If the 20-0461 Fuel Level Switch is used, this 20-0508 Fuel Level Diagnostic Indicator can be used as a visual reference for fuel level.
• When the fuel level switch is triggered, the signal is sent directly to this LED.
• While often not practical to be viewed while driving, this indicator can be used for diagnosing a potential fueling issue.

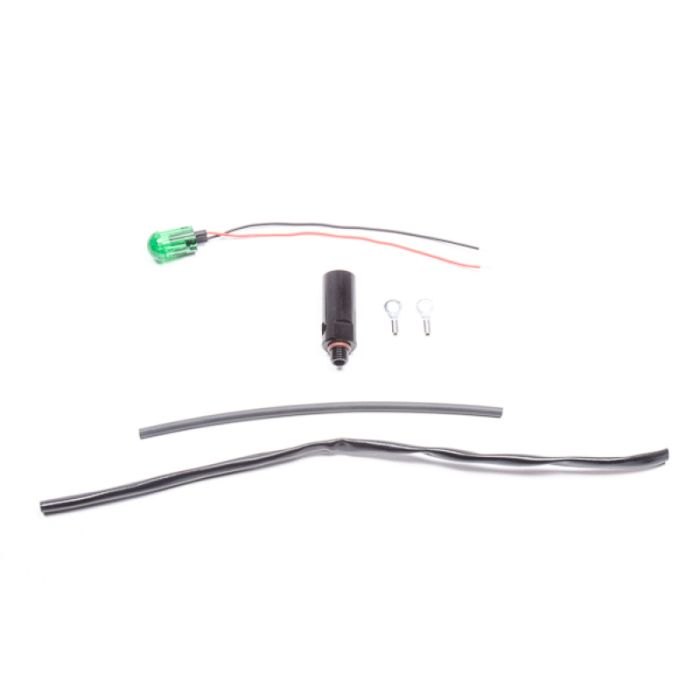

• The 20-0508 kit includes the parts shown below. Soldering is required.

• A 2AN ORB (5/16"-24) threaded port is required for installing.
• If stacking on top of the fuel level switch (as pictured above) the panel thickness must be 0.75" minimum.
