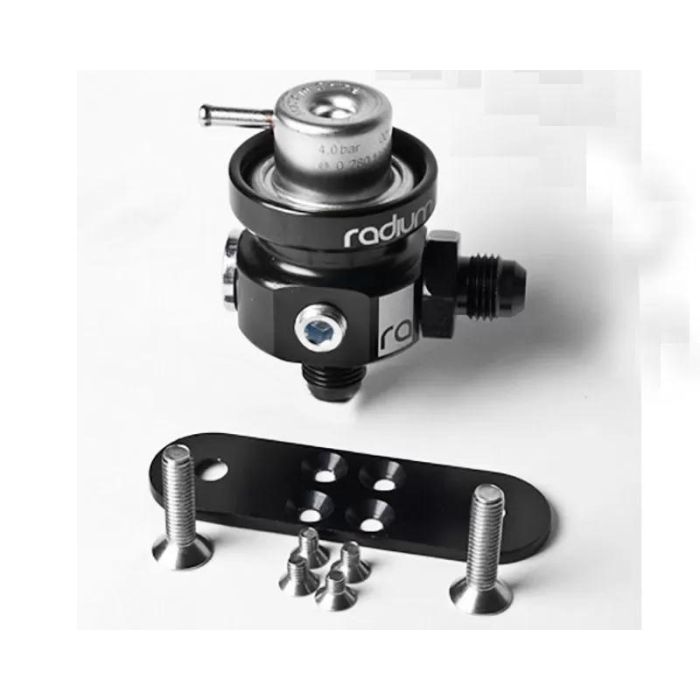

Radium Engineering Fuel Pressure Regulator W/ 4 Bar Bosch Reg - 20-0010-01

The Radium Engineering Universal Fuel Pressure Regulator is a must have for those planning on upgrading their FPR. The FPR has been designed and built around an OEM Bosch regulator top which is found in millions of OEM vehicles due to the extremely high quality. Surrounded by a billet aluminum housing that is easily mountable, the regulator body is held by a stainless steel snap ring for an easy removal if needed to be cleaned or replaced.

Each Universal FPR is vacuum referenced with a 1:1 ratio, as intake manifold pressure changes the fuel pressure changes at the same rate. If installed without vacuum, static fuel pressure is easily achievable. Each Universal Fuel Pressure Regulator is equipped with an integrated machined -6AN flare fitting for the return port which ultimately reduces the number of fittings and possible leak points. Each regulator body is laser etched and anodized for a superior finish. Radium offers two options of genuine Bosch regulator tops, 43.5 psi static and 58.2 psi static.

Features:

• GENUINE Bosch regulator top 4.0 Bar (58.2 psi) static
• Billet 6061 Aluminum Housing
• 6AN Male O-ring Adapter Fitting
• 9/16-18 O-ring Plug Fitting
• 1/8-27 NPT Port Plug
• Integrated -6AN Male Return Port
• Stainless Steel Mounting Hardware & Snap Ring
• Anodized Aluminum Mounting Bracket

• The exact min, static, and max pressures are influenced by the flow rate of the fuel pump being used. Radium FPRs are tested using a common high flowing Walbro 255lph pump. If a significantly higher flowing pump is used, the minimum pressure ratings may be higher than what is advertised.
