Radium Engineering Fuel Rail 20BREW Secondary Mazda RX-7 1993-1995- RADI-20-0465

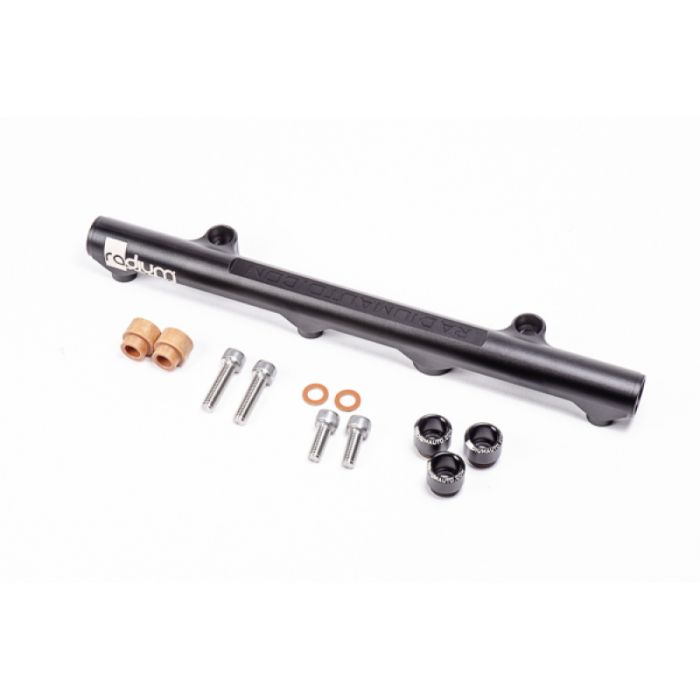

The Radium Engineering high flow secondary fuel rail is for the OEM lower intake manifold found on the Mazda 20B-REW rotary engine. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. The three 8AN ORB ports are compatible with these fittings HERE. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor (using 14-0421), a pressure transducer, Radium fuel pulse damper, etc.

Like the stock fuel rail, the rail features 11mm injector bores permitting the use of OEM fuel injectors.

When the provided 14mm lower injector seats and insulating phenolic spacers are used, aftermarket Bosch EV14 style injectors can be used

The injector seats were designed to be compatible with or without the OEM diffusers in place. They feature FKM O-rings making them suitable for boosted applications.

Fitment:

• Mazda RX-7 1993-1995
