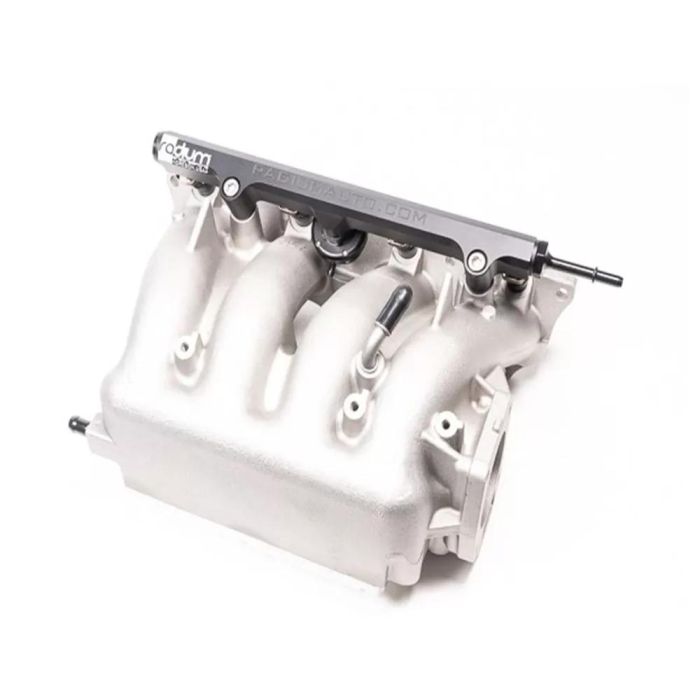

Radium Engineering Honda K-Series Fuel Rail Plumbing Kit - 20-0230-PK
Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. If purchased after July 2017, there is a provision to reuse the OEM injector clips
This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The OEM insulating spacers (Honda P/N: 16638-PNA-000) are reused and phenolic washers are included to thermally insulate the fuel rail from the aluminum intake manifold.
This part only includes the fuel rail and the mounting hardware making it ideal for custom fuel plumbing applications. If using the stock fuel feed line, select the plumbing kit shown below.
Included:
- Black Anodized Laser Etched Aluminum Fuel Rail
- Stainless Steel Mounting Hardware
- Phenolic Thermal Insulating Washers
- Honda K-Series
- This kit allows easy connection of a factory feed line.
- The extended SAE quick connect fitting clears the OEM coolant hose (if equipped).
- Two plugs are included to plug the other two ports on the fuel rail.
| Brand | Radium Engineering |
|---|
