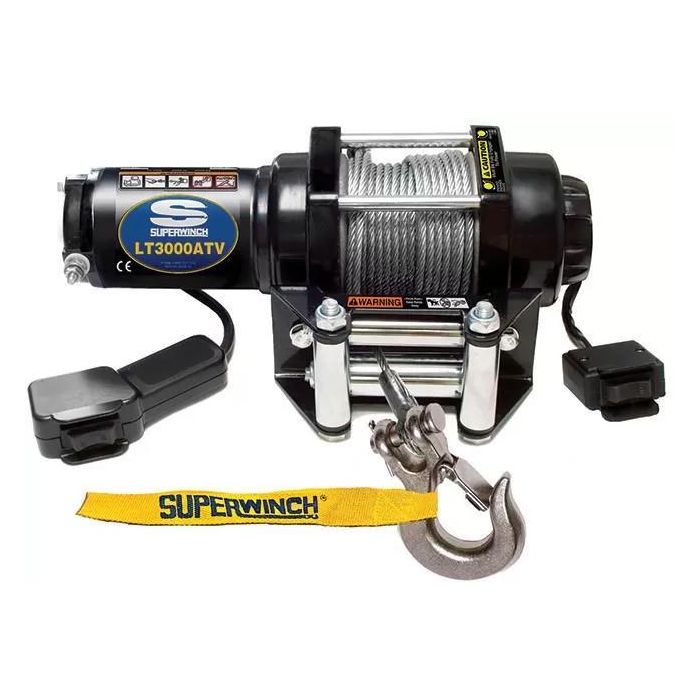

Superwinch 3000 LBS 12V DC 3/16in x 50ft Steel Rope LT3000 Winch - 1130220

An outdoorsman's best choice for compact, quiet, all-purpose winching, the versatile LT3000 ATV winch from Superwinch is ideal for those needing a larger, durable winch with brand-name reliability and functionality. Constructed with a low amp, permanent magnet motor protected by a circuit breaker, the LT3000 delivers the reliable performance that has made Superwinch the brand users recognize and trust. It is also a great winch for the casual ATV snowplow application.

Features:

• Rated Line Pull : 3,000 lbs (1,361 kgs)
• Motor : Sealed 1.2 HP Permanent Magnet
• Gearing : 1-Stage Planetary
• Gear Ratio : 136:1
• Solenoid : Sealed Solenoid, Circuit Breaker Protected
• Clutch : Free-Spooling, Ergonomic Control
• Brake : Automatic, 100% Load Holding
• Rope : Wire Rope 3/16" x 50' (4.8mm x 15.0m)
• Hook : Heavy-Duty, Clevis Pinned Latch
• Fairlead : Heavy-Duty 4-Way Roller
• Remote : 12' Hand-Held
• Dimensions : 13.2" L x 4.25" W x 4.25" H (335.3mm L x 108mm W x 108mm H)
• Drum Diameter : 2.0" (50.2mm)
• Drum Length : 2.9" (74mm)
• Mounting Bolt Pattern : 3.0" x 4.87" (76mm x 124mm)
• Installed Weight : 20.0 lbs (9.0 kgs)
• Shipping Weight : 27 lbs (12.24 kgs)
• Line Pull: 0 lbs 15 Amps Motor Draw / 27 FPM (8.3 MPM) Line Speed
• Line Pull: 3,000 lbs 180 Amps Motor Draw / 4 FPM (1.2 MPM) Line Speed
• Battery Leads : 6' x 6 Gauge
